Starrett LSS 716X

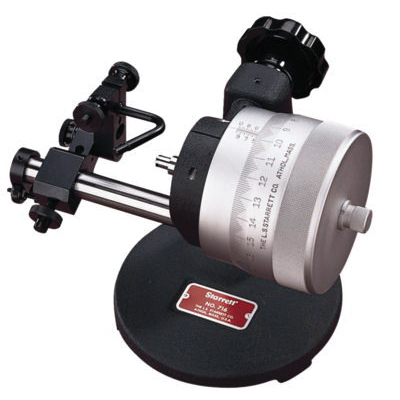

Starrett 716X Indicator Tester, 0 to 1 in Measuring, Graduations 0.0001 in, Carbide Tip
Invoice description:
Indicator Testers No. 71 6x 716xm Series Dial
Factory Order
Starrett Indicator Tester, Series: 716, 0 to 1 in Measuring, Graduations: 0.0001 in, 0.0001 in Resolution, Flat Anvil, Flat Spindle, Speeder Thimble, Carbide Tip
Features
- Unique in its ability to swing to any position between vertical and horizontal
- This model includes tester with carbide faced spindle, indicator mounting and offset attachment
- Micrometer head is 469 series super-precision head with reverse reading capability
- Indicator mounting attachment
- Provides a rapid means for calibrating AGD and dial test indicators for linearity and repeatability
- Can be swung to any position between vertical and horizontal
- Micrometer head can be turned on its axis and its scale positioned to suit the operators need
Specifications
ApplicationFor calibrating AGD and dial test indicators
Anvil TypeFlat
Graduations0.0001 in
MaterialCarbide Tip
Measuring Range0 to 1 in
Resolution0.0001 in
Series716
Spindle TypeFlat
Thimble TypeSpeeder
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
