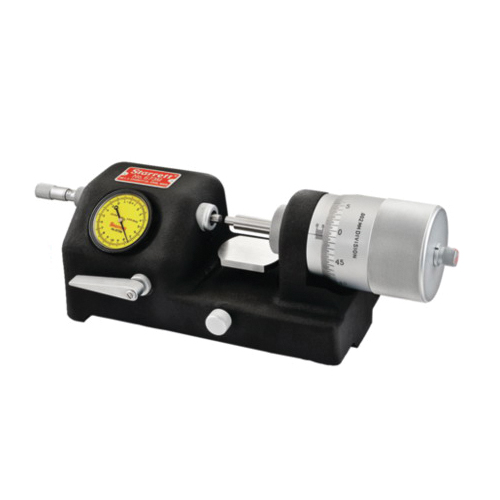

Starrett LSS 673MXZ

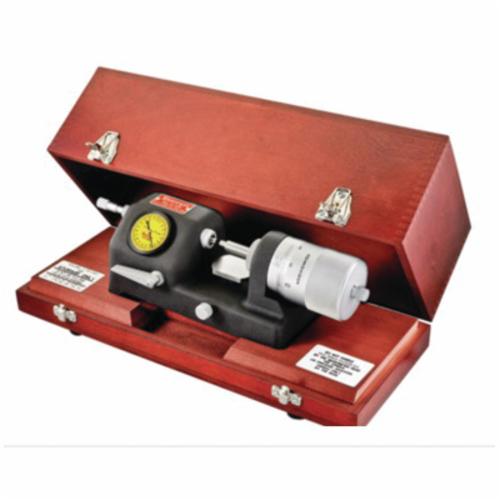

Starrett 673MXZ Direct Reading Bench Micrometer With Wood Case, 0 to 50 mm Measuring, Graduations 0.002 mm, Carbide Tip, Satin Chrome
Factory Order
Starrett Bench Micrometer, Direct Reading, Series: 673M, 0 to 50 mm Measuring, Graduations: 0.002 mm, 0.002 mm Resolution, Flat Anvil, Flat Spindle, Speeder Thimble, Carbide Tip, Satin Chrome
Features
- Quick reading graduations
- High accuracy
- Adjustable work table centered beneath the anvil and spindle
- No-glare starrett satin chrome finish
- Base is a heavy, rigid casting, incorporating at the left end a movable anvil
- Friction-free motion transfer mechanism between the anvil and the indicator
- Furnished with a speeder
- Ring-type knurled lock nut for quick and sure locking
- Spindle and anvil are carbide faces
Specifications
Anvil TypeFlat
FinishSatin Chrome
Graduations0.002 mm
MaterialCarbide Tip
Measuring Range0 to 50 mm
Resolution0.002 mm
Series673M
Spindle TypeFlat
Thimble TypeSpeeder
TypeDirect Reading
