Starrett LSS 577XP

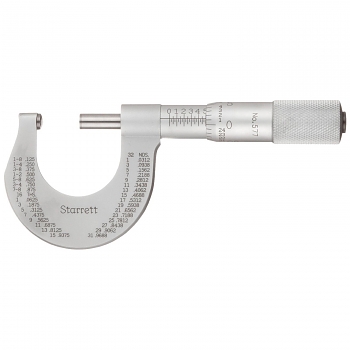

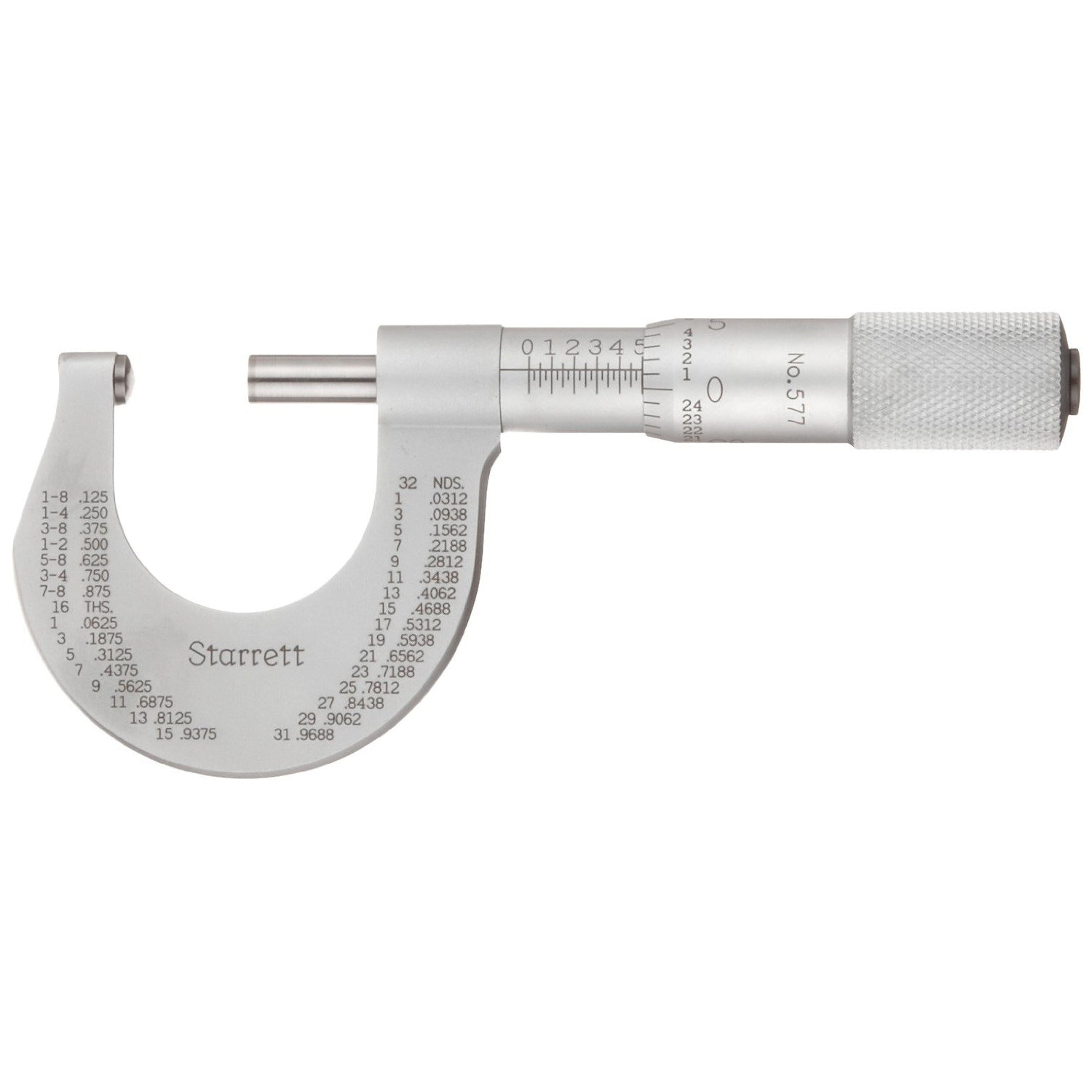

Starrett® Outside Micrometer, Mechanical, Series: 577, 0 to 1 in, Graduations: 0.001 in, 0.001 in Resolution, Round Anvil, Flat Spindle, 0.235 in Spindle Dia, Ratchet Thimble, Carbide Tip, Satin Chrome, 4-17/64 in L x 39/64 in W x 2-7/64 in H

• Features

• Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
• Balanced frame design for comfortable and accurate measuring
• Tapered frame for narrow slots and tight places
• Furnished with fixed, non-rotating anvil
• One-piece frame of drop forged steel
• Extremely hard and stable one-piece spindle
• Quick and easy adjustment
• Design allows 50% to 75% contact with the thread to be measured, insuring contact with the pitch diameter at all times
• Micro-lapped carbide measuring faces

Specifications

Documents

• Catalog
