Starrett LSS 486P-7

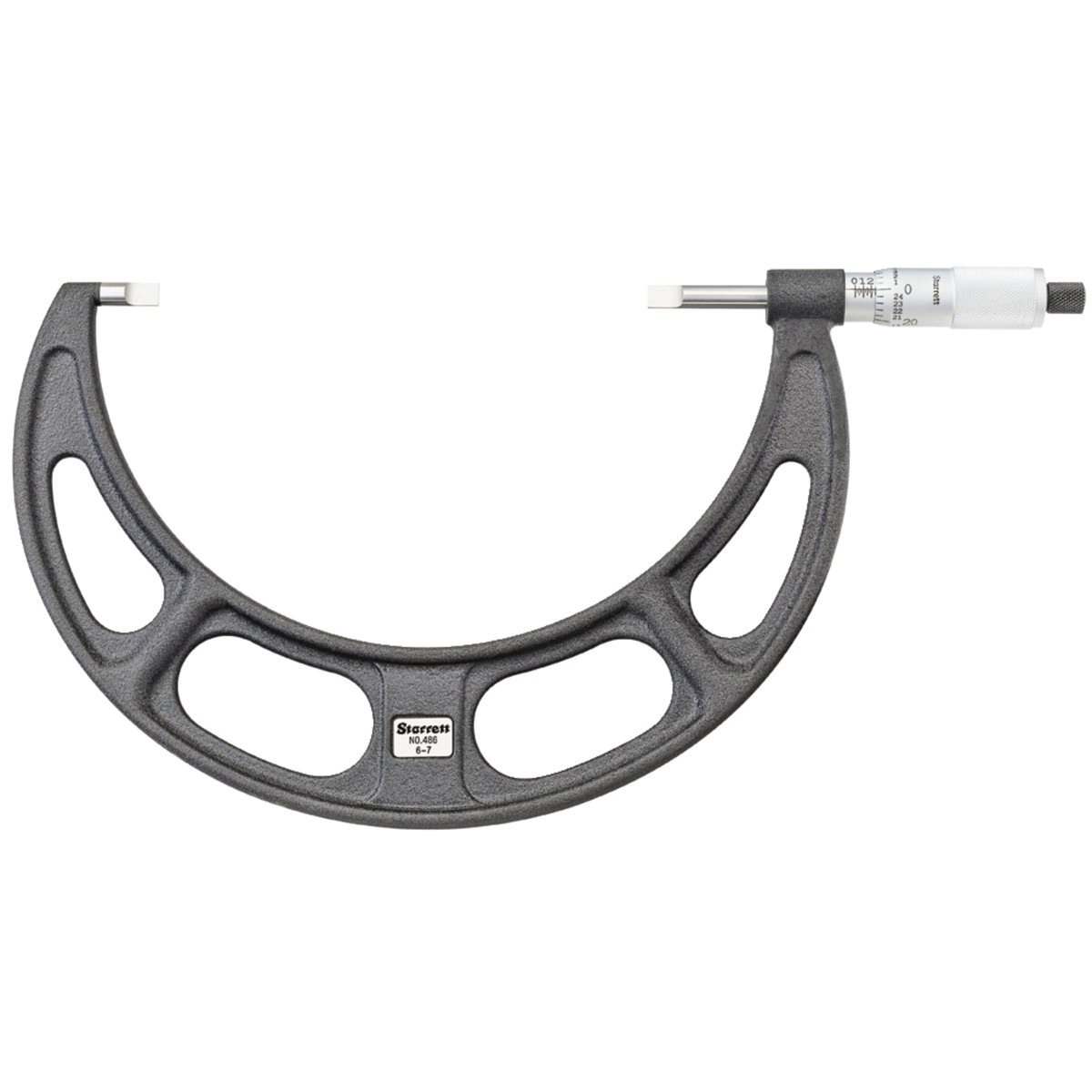

Starrett 486P-7 Mechanical Blade Type Micrometer With Non-Rotating Spindle, 6 to 7 in Measuring, Graduations 0.001 in, Steel, Satin Chrome
Factory Order
Starrett Blade Type Micrometer, Mechanical, Series: 486, 6 to 7 in Measuring, Graduations: 0.001 in, 0.001 in Resolution, 0.03 in Blade Anvil, 0.3 in Spindle Diameter, Speeder Thimble, Steel, Satin Chrome, 13-17/64 in L x 11/16 in W x 6-29/32 in H Dimensions
Features
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Designed for fast and accurate measurements of circular form tools, diameter and depth of narrow grooves, slots, keyways, recesses and depths between lands and fins
- Balanced frame and thimble design ensure easy handling and better readability
- Speeder for quicker adjustment on all sizes
- Non-rotating spindle prevents blade from turning in narrow slots or rolling off shoulder
- Satin chrome finish avoids glare and resists rust
- Rigid steel frame ribbed for extra strength
- Extremely hard and stable one-piece spindle
- Quick and easy adjustment
Specifications
Anvil Type0.03 in Blade
Dimensions13-17/64 in L x 11/16 in W x 6-29/32 in H
FinishSatin Chrome
Graduations0.001 in
MaterialSteel
Measuring Range6 to 7 in
Resolution0.001 in
Series486
Spindle Diameter0.3 in
Thimble TypeSpeeder
TypeMechanical
