Starrett LSS 486P-11

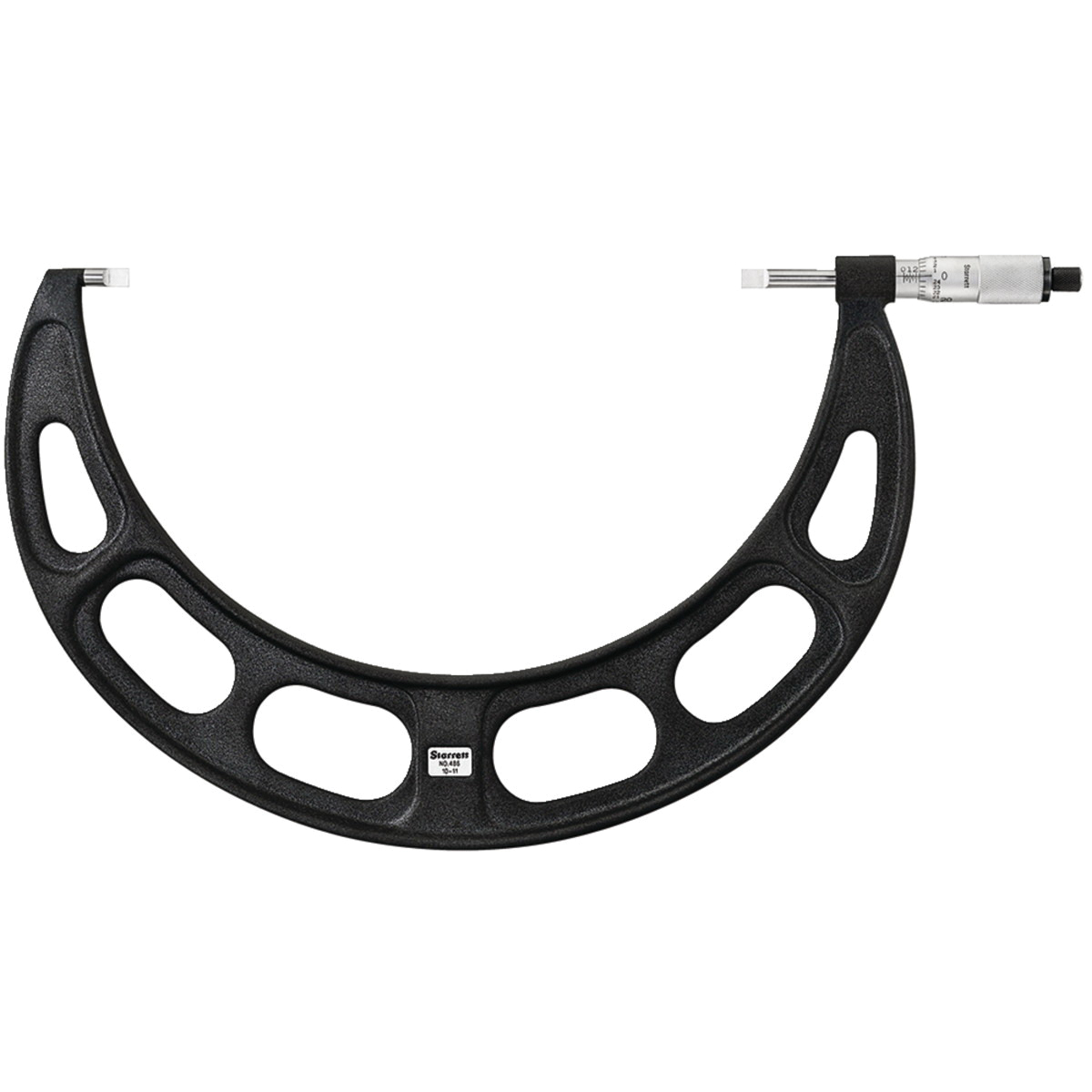

Starrett 486P-11 Mechanical Blade Type Micrometer With Non-Rotating Spindle, 10 to 11 in Measuring, Graduations 0.001 in, Steel, Satin Chrome

Invoice description: Blade Type Micrometers W It H Non-rotating Sp

UPC: 049659670981
UNSPSC: 41111601
Manufacturer PN: 486P-11
$1,655.94 EA
Factory Order
QTY:


Starrett Blade Type Micrometer, Mechanical, Series: 486, 10 to 11 in Measuring, Graduations: 0.001 in, 0.001 in Resolution, 0.03 in Blade Anvil, 0.3 in Spindle Diameter, Speeder Thimble, Steel, Satin Chrome, 17-41/64 in L x 11/16 in W x 9-17/32 in H Dimensions

  • Features

  • Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
  • Designed for fast and accurate measurements of circular form tools, diameter and depth of narrow grooves, slots, keyways, recesses and depths between lands and fins
  • Balanced frame and thimble design ensure easy handling and better readability
  • Speeder for quicker adjustment on all sizes
  • Non-rotating spindle prevents blade from turning in narrow slots or rolling off shoulder
  • Satin chrome finish avoids glare and resists rust
  • Rigid steel frame ribbed for extra strength
  • Extremely hard and stable one-piece spindle
  • Quick and easy adjustment

Specifications

Anvil Type0.03 in Blade
Dimensions17-41/64 in L x 11/16 in W x 9-17/32 in H
FinishSatin Chrome
Graduations0.001 in
MaterialSteel
Measuring Range10 to 11 in
Resolution0.001 in
Series486
Spindle Diameter0.3 in
Thimble TypeSpeeder
TypeMechanical

Additional Information

Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
