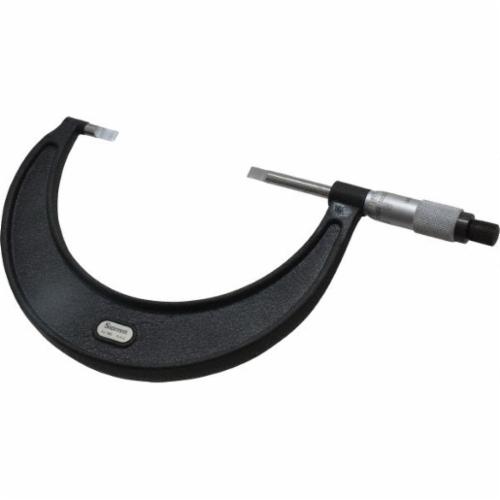

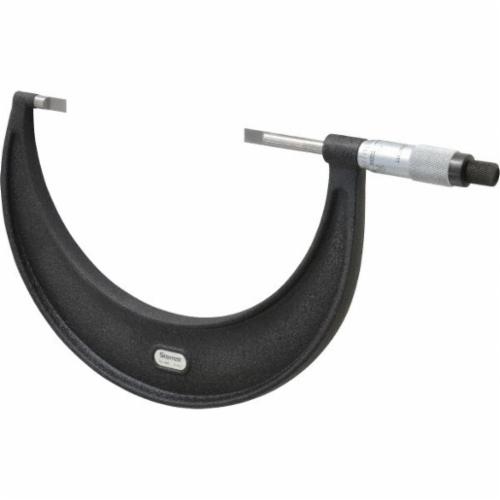

Starrett LSS 486MP-125

Starrett Blade Type Micrometer, Mechanical, Series: 486M, 100 to 125 mm Measuring, Graduations: 0.01 mm, 0.01 mm Resolution, 0.8 mm Blade Anvil, 1/4 in Spindle Diameter, Speeder Thimble, Steel, Satin Chrome, 10-19/64 in L x 39/64 in W x 5-19/32 in H Dimensions

• Features

• Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
• Designed for fast and accurate measurements of circular form tools, diameter and depth of narrow grooves, slots, keyways, recesses and depths between lands and fins
• Balanced frame and thimble design ensure easy handling and better readability
• Speeder for quicker adjustment on all sizes
• Non-rotating spindle prevents blade from turning in narrow slots or rolling off shoulder
• Satin chrome finish avoids glare and resists rust
• Rigid steel frame ribbed for extra strength
• Extremely hard and stable one-piece spindle
• Quick and easy adjustment

Specifications

Documents

• Catalog
