Starrett LSS 483MXRL-25

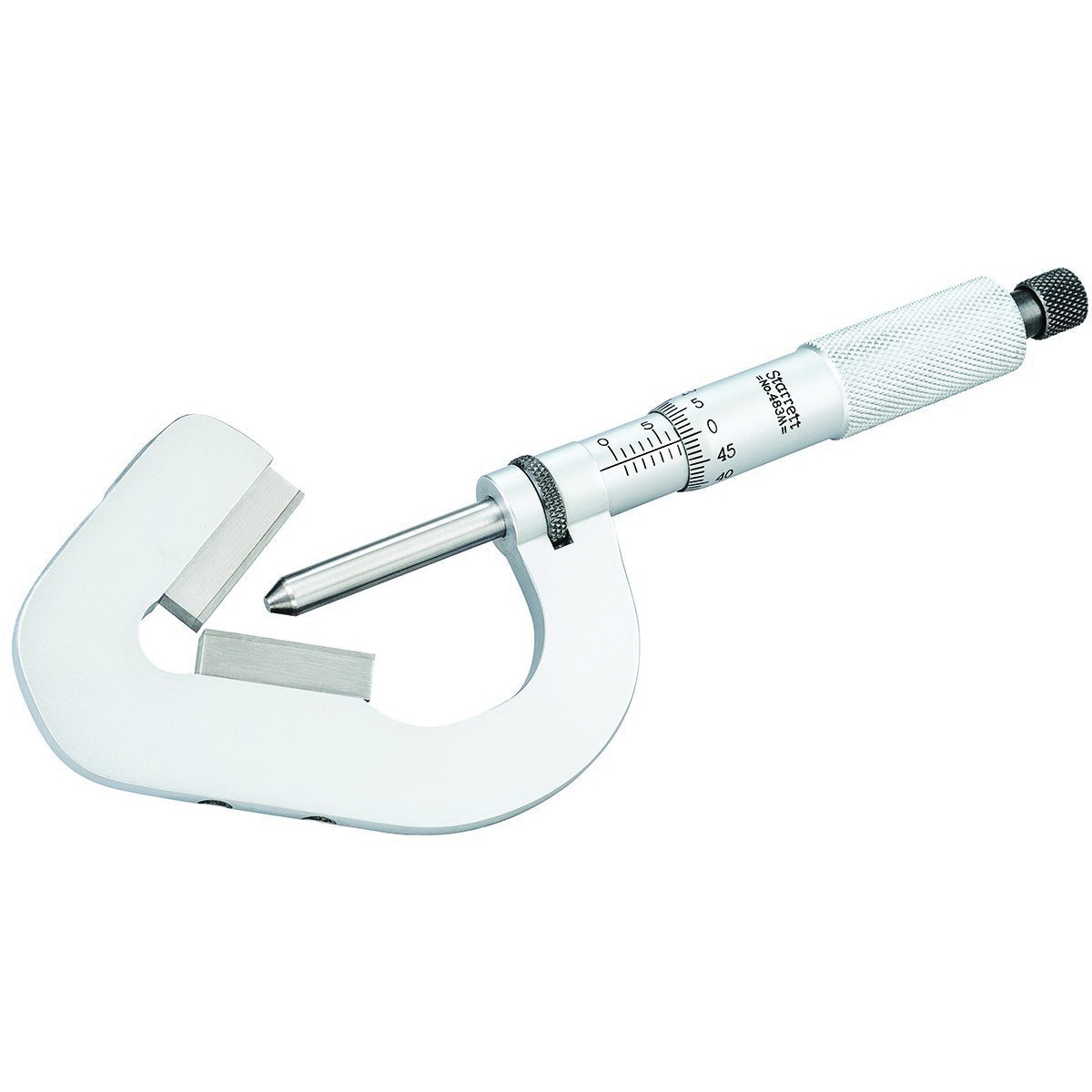

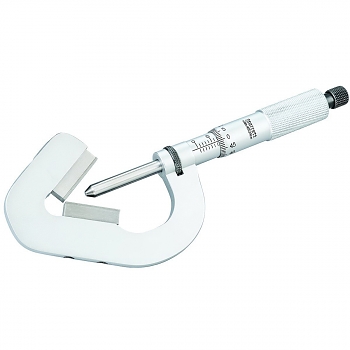

Starrett 483MXRL-25 Anvil Micrometer, 2 to 25 mm Measuring, Graduations 0.001 mm, Carbide Tip, Satin Chrome
Invoice description:
V-anvil Micrometers With C Arbide Facing On
Factory Order
Starrett Anvil Micrometer, Series: 483M, 2 to 25 mm Measuring, Graduations: 0.001 mm, 0.001 mm Resolution, V-Shape Anvil, Taper Spindle, 0.235 in Spindle Diameter, Ratchet Thimble, Carbide Tip, Satin Chrome, 6.706 in L x 2.729 in H Dimensions
Features
- Quick and easy adjustment
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Balanced frame design for comfortable and accurate measuring
- No-glare starrett satin chrome finish
- One-piece frame of drop forged steel
- Extremely hard and stable one-piece spindle
- Ring-type knurled lock nut for quick and sure locking
- Combination ratchet and speeder for uniform pressure and quicker adjustment
- Micro-lapped carbide measuring faces
- Carbide facing on spindle and anvils
Specifications
Anvil TypeV-Shape
Dimensions6.706 in L x 2.729 in H
FinishSatin Chrome
Graduations0.001 mm
MaterialCarbide Tip
Measuring Range2 to 25 mm
Resolution0.001 mm
Series483M
Spindle Diameter0.235 in
Spindle TypeTaper
Thimble TypeRatchet
Additional Information
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
