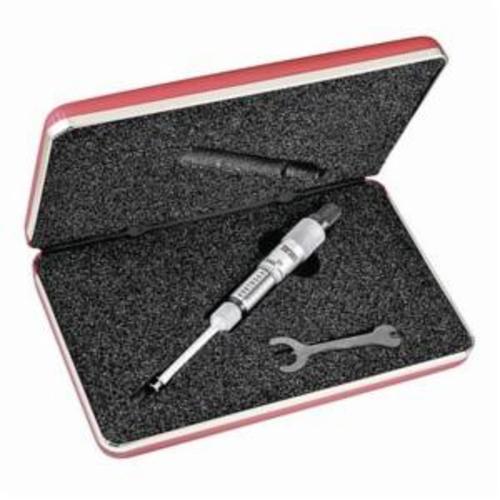

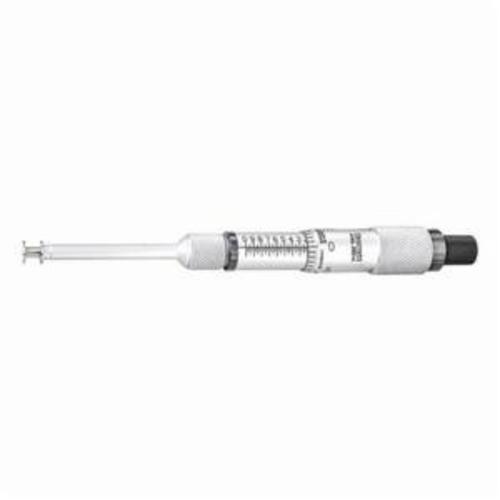

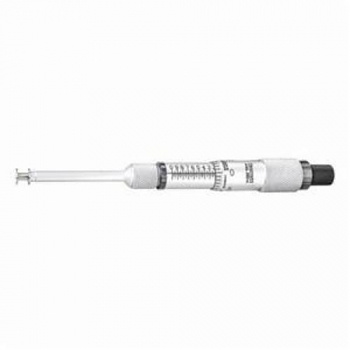

Starrett LSS 260Z
Starrett 260Z 260M Mechanical Groove Micrometer, 0.05 to 1.05 W Groove, 0 to 1 W Land in Measuring, Graduations 0.001 in, Steel, Satin Chrome
Factory Order
Starrett Groove Micrometer, Mechanical, Series: 260M, 0.05 to 1.05 W Groove, 0 to 1 W Land in Measuring, +/-0.0004 in Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Disk Anvil, Disk Spindle, Speeder Thimble, Steel, Satin Chrome, 39/64 in Dia x 5-13/16 in L Dimensions
Features
- Quick-reading figures - every thousandth numbered on inch tools
- Each measuring disc is 9/32 in (7mm) diameter and 0.025 in (0.63mm) thick
- Will measure groove widths 0.050-1.050 in (1.27-26.6mm)
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Balanced design to ensure easy handling and better readability
- Quick and easy adjustment
- Will measure land widths from 0 - 1 in and 0 - 25 mm
- Extremely hard and stable one-piece spindle
- Hardened, ground and lapped measuring discs
- Hardened, ground and lapped measuring discs
Specifications

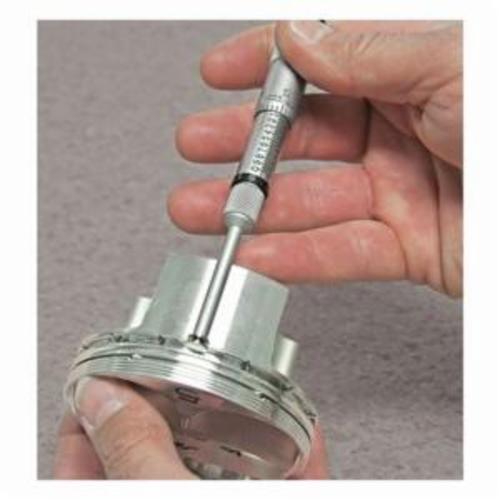

ApplicationFor measures widths of internal or external grooves and lands
Accuracy+/-0.0004 in
Anvil TypeDisk
Dimensions39/64 in Dia x 5-13/16 in L
FinishSatin Chrome
Graduations0.001 in
MaterialSteel
Measuring Range0.05 to 1.05 W Groove, 0 to 1 W Land in
Resolution0.001 in
Series260M
Spindle TypeDisk
Thimble TypeSpeeder
TypeMechanical
Full Engineering Drawing
