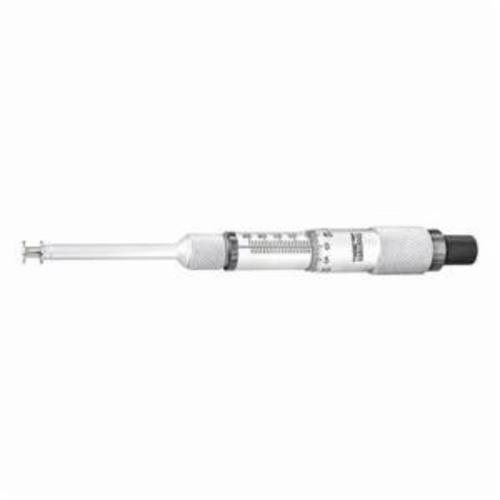

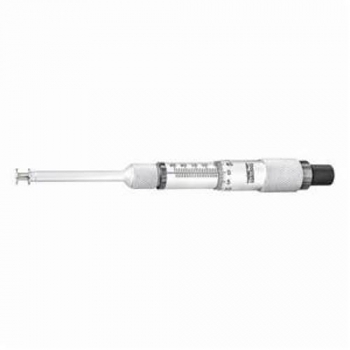

Starrett LSS 260MZ
Starrett 260MZ Mechanical Groove Micrometer, 1.27 to 26.27 mm W Groove/0 to 25 mm W Land Measuring, Graduations 0.01 mm, Steel, Satin Chrome
Invoice description:
Groove Micrometers No. 2 60 260m 0.01mm Grad
Factory Order
Starrett Groove Micrometer, Mechanical, Series: 260M, 1.27 to 26.27 mm W Groove/0 to 25 mm W Land Measuring, +/-0.01 mm Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Disk Anvil, Disk Spindle, Speeder Thimble, Steel, Satin Chrome, 13.64 in Dia x 5.859 in L Dimensions
Features
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Quick-reading figures every thousandth numbered on inch tools
- Balanced design to ensure easy handling and better readability
- Quick and easy adjustment
- Starrett satin chrome finish no glare resists rust
- Each measuring disc is 9/32 in Dia and 0.025 in THK
- Will measure groove widths 0.05 - 1.05 in
- Will measure land widths from 0 - 1 in and 0 - 25 mm
- Extremely hard and stable one-piece spindle
- Hardened, ground and lapped measuring discs
Specifications
ApplicationFor measures widths of internal or external grooves and lands
Accuracy+/-0.01 mm
Anvil TypeDisk
Dimensions13.64 in Dia x 5.859 in L
FinishSatin Chrome
Graduations0.01 mm
MaterialSteel
Measuring Range1.27 to 26.27 mm W Groove/0 to 25 mm W Land
Resolution0.01 mm
Series260M
Spindle TypeDisk
Thimble TypeSpeeder
TypeMechanical
Additional Information

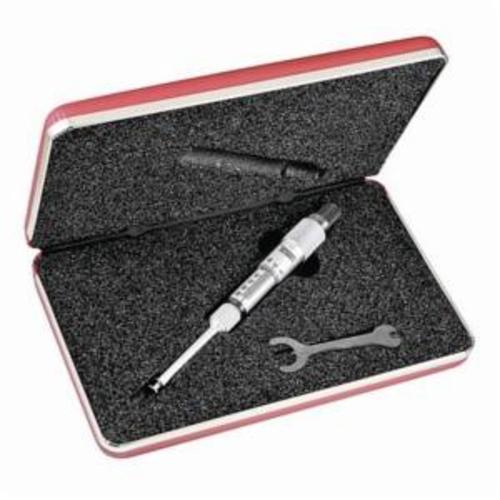

IncludesPlastic Case
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
Full Engineering Drawing
