Starrett LSS 220XRL-2

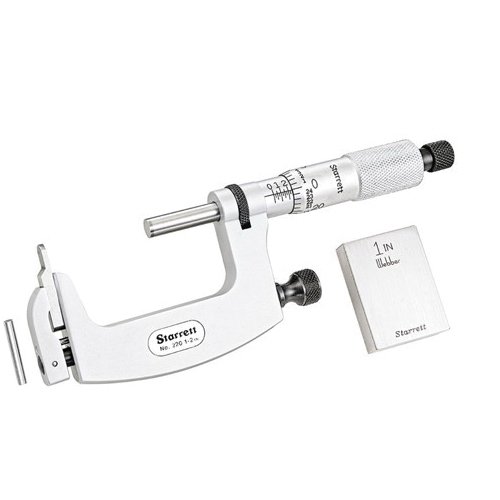

Starrett 220XRL-2 Multi-Anvil Micrometer, 1 to 2 in Measuring, Graduations 0.001 in, Forged Steel, Satin Chrome
Invoice description:
Mul-t-anvil Micrometers No . 220 220m Series
Factory Order
Starrett Multi-Anvil Micrometer, Series: 220, 1 to 2 in Measuring, +/-0.0002 in Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Round and Flat Anvil, Flat Spindle, 0.235 in Spindle Diameter, Ratchet Thimble, Forged Steel, Satin Chrome, 5-47/64 in L x 39/64 in W x 2-1/64 in H Dimensions
Features
- Rigid one-piece frame of drop forged steel, ribbed for strength and stability
- Extremely hard and stable one-piece spindle
- Micro-lapped measuring faces
- Will handle a wide variety of measurements impossible to obtain with regular micrometers
- Starrett satin chrome finish, no-glare and resists rust
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Ring-type knurled lock nut for quick and sure locking
- Interchangeable anvils are rigidly held in the vise type frame and quickly interchanged by a single lock screw adjustment
- Two hardened anvils furnished - round anvil approximately 0.120 in diameter and flat anvil approximately 1/8 in and 0.060 in thick
Specifications
Accuracy+/-0.0002 in
Anvil TypeRound and Flat
Dimensions5-47/64 in L x 39/64 in W x 2-1/64 in H
FinishSatin Chrome
Graduations0.001 in
MaterialForged Steel
Measuring Range1 to 2 in
Resolution0.001 in
Series220
Spindle Diameter0.235 in
Spindle TypeFlat
Thimble TypeRatchet
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
