CM CM M647P

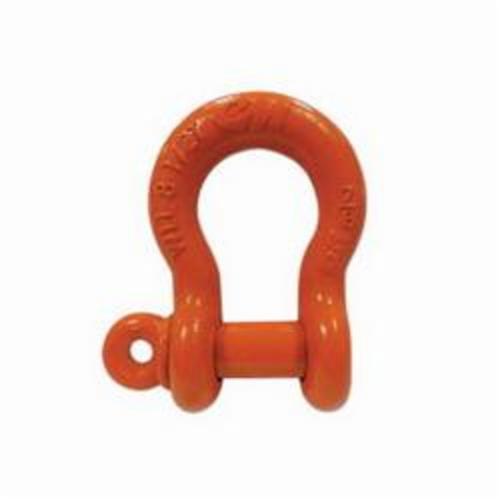

CM M647P Super Strong Anchor Shackle, 1 ton Load, 5/16 in, 3/8 in Dia Screw Pin, Orange Powder Coated

Invoice description: Shackle Screw Pin 5/16"

UPC: 043927007295
UNSPSC: 24101641
Manufacturer PN: M647P
$7.64 EA
Factory Order
Estimated to ship in 23 days
QTY:


CM Anchor Shackle, Super Strong, 1 ton Load, 5/16 in Size, 3/8 in Pin Diameter, Screw Pin, 1-1/4 in Inner Length, 0.812 in Inner Width, 0.531 in Opening, 1 in Eye Outer, Carbon Steel Body, Alloy Steel Pin, Orange Powder Coated

  • Features

  • Manufactured from technically advanced micro alloy steel with optimal hardness for strength and ductility
  • Shackles show major deformation before failure
  • Working load limit and traceability codes shown as permanent markings on body
  • All shackles have alloy quenched and tempered pins
  • Shock load testing of assemblies at -30 deg F consistently demonstrate microalloy outperforms quenched and tempered carbon material
  • Anchor shackles can be side loaded or used for multiple connections
  • 6:1 design factor

Specifications

Body MaterialCarbon Steel
Eye Outer Size1 in
FinishOrange Powder Coated
Inner Length1-1/4 in
Inner Width0.812 in
Load Capacity1 ton
Opening Size0.531 in
Pin Diameter3/8 in
Pin MaterialAlloy Steel
Pin TypeScrew
Size5/16 in
TypeSuper Strong

Additional Information

Standards/ApprovalFederal Specification RR-C-271D
Country of OriginUS
