Campbell CAM 5410895

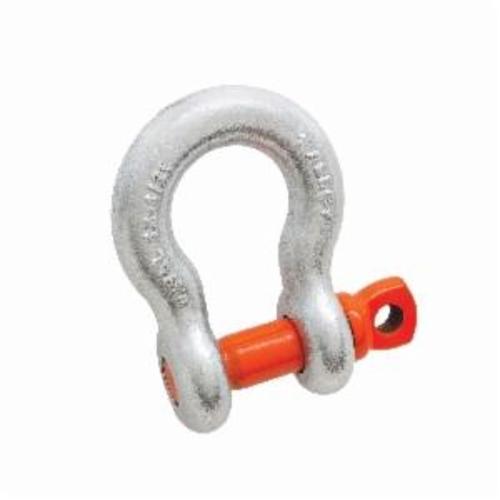

Campbell T5410895 419-A Anchor Shackle, 3.33 ton Load, 1/2 in, 5/8 in Dia Screw Pin, Galvanized
Invoice description:
Shackle Screw Pin 1/2"
In stock
(21)
Campbell Anchor Shackle, Series: 419-A, 3.33 ton, 1/2 in, 5/8 in Pin Dia, Screw Pin, 1-15/16 in Inner Length, 1-1/4 in Inner Width, 13/16 in Opening, 1-1/4 in Eye Outer Size, Drop Forged Alloy Steel Body, Alloy Steel Pin, Galvanized
Features
- 419 series shackles meet or exceed all manufacturing requirements of the ASME B30.26 "rigging hardware", these include the material ductility requirement (Section 26-1.1.2), the design factor requirement (Section 26.1.2), the identification requirement (Section 26-1.5.1) and the effective temperature range (Section 26-1.6.1), the shackles can be proof tested in accordance with Section 26-1.4
- Working load limit, size, manufacture name, date code, "CE" mark and USA permanently marked on each shackle
- Statistically tested for impact resistance, tensile strength, hardness, ductility and fatigue
- 5:1 design factor
- Pins and bolts are heat treated and made of alloy steel and painted orange
- Certification available upon request
- 5:1 design factor
- Pins and bolts are heat treated and made of alloy steel and painted orange
Specifications
Body MaterialDrop Forged Alloy Steel
Eye Outer Size1-1/4 in
FinishGalvanized
Inner Length1-15/16 in
Inner Width1-1/4 in
Load Capacity3.33 ton
Opening Size13/16 in
Pin Diameter5/8 in
Pin MaterialAlloy Steel
Pin TypeScrew
Series419-A
Size1/2 in
Additional Information
WarrantyLifetime Limited
Standards/ApprovalASTM A153|CE Certified|Federal Specification RR-C-271, Class 2, Grade A, Type IVA|ASME B30.26
Country of OriginUS
