Campbell CAM 5410835

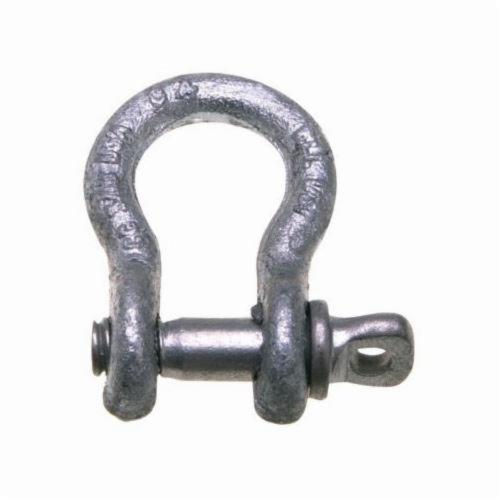

Campbell 5410835 Anchor Shackle, 2 ton Load, 1/2 in, 5/8 in Dia Screw Pin, Galvanized
Invoice description:
Shackle Screw Pin 1/2" H /g M650g Gal
In stock
(7)
Campbell Anchor Shackle, 2 ton, 1/2 in, 5/8 in Pin Dia, Screw Pin, 1-15/16 in Inner Length, 1-1/4 in Inner Width, 13/16 in Opening, 1-1/4 in Eye Outer Size, Drop Forged Carbon Steel Body, Alloy Steel Pin, Galvanized
Features
- Working load limit, size, manufacture name, date code and USA permanently marked on wach shackle
- Statistically tested for impact resistance, tensile strength, hardness, ductility and fatigue
- 419 series shackles meet or exceed all manufacturing requirements of the ASME B30.26 "rigging hardware", these include the material ductility requirement (Section 26-1.1.2), the design factor requirement (Section 26.1.2), the identification requirement (Section 26-1.5.1) and the effective temperature range (Section 26-1.6.1), the shackles can be proof tested in accordance with Section 26-1.4
- 6 : 1 design factor
- Pins and bolts are heat treated and made of alloy steel
Specifications
Body MaterialDrop Forged Carbon Steel
Eye Outer Size1-1/4 in
FinishGalvanized
Inner Length1-15/16 in
Inner Width1-1/4 in
Load Capacity2 ton
Opening Size13/16 in
Pin Diameter5/8 in
Pin MaterialAlloy Steel
Pin TypeScrew
Size1/2 in
Additional Information
Standards/ApprovalASTM A153|Federal Specification RR-C-271, Class 2, Grade A, Type IVA|ASME B30.26
Country of OriginUS
