YG-1 YG1 UGMG53032

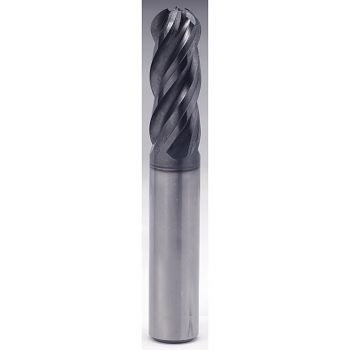

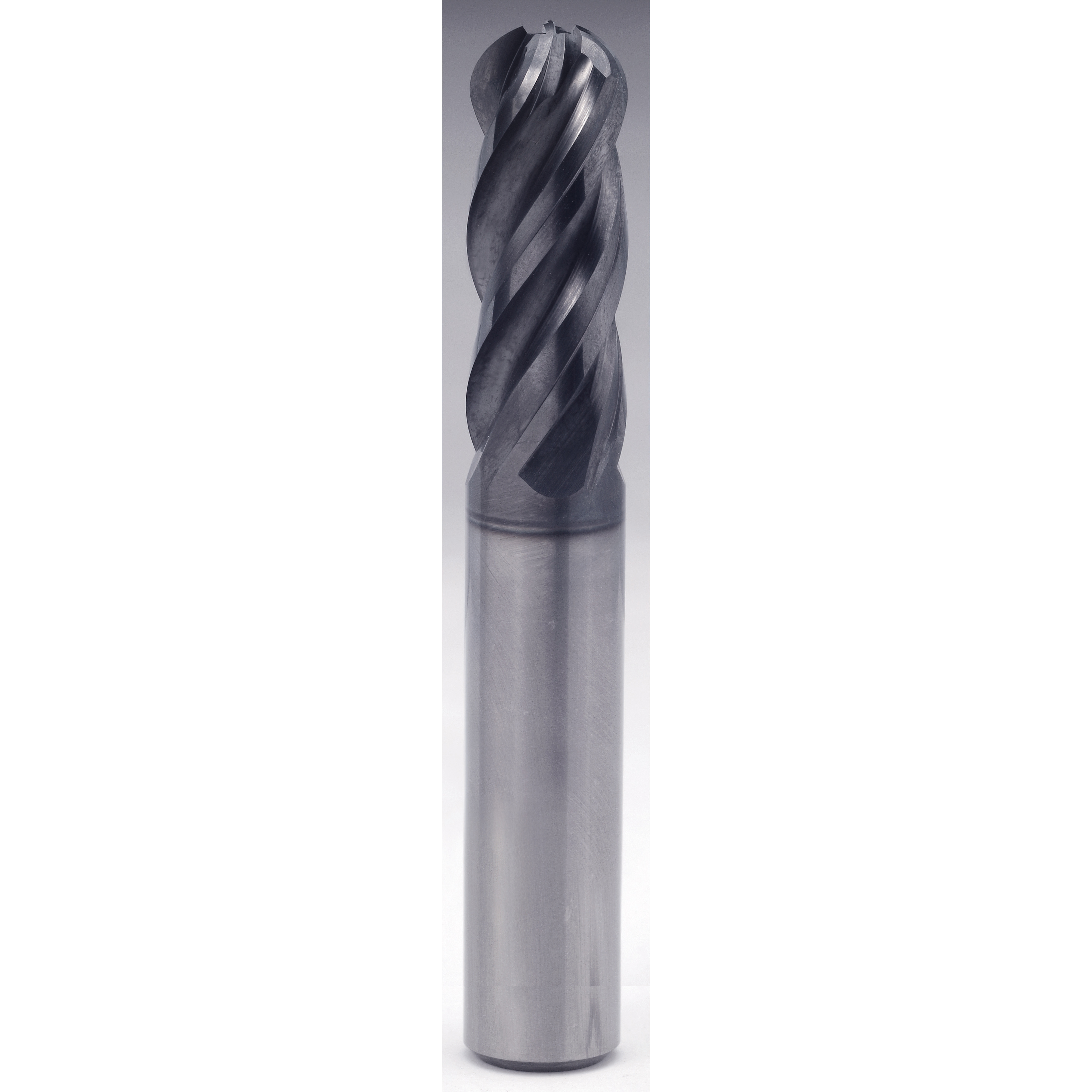

YG-1 UGMG53032 UGMG53 V7 PlusA Ball Nose Center Cut Imperial Standard Length End Mill, 1/2 in Dia Cutter, 1 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3 in OAL, Y-Coated
Invoice description:
Ball Mill 1/2 X 1/2 X 1 X 3 4fl
Factory Order
YG-1 End Mill, Ball Nose Center Cut Imperial Standard Length, Series: UGMG53 V7 PlusA, 1/2 in Cutter Dia, 3 in Overall Length, 1 in Length of Cut, 4 Flutes, Spiral Flute, 1/2 in Shank Dia, Right Hand Cutting, 36 deg Helix Angle, Plain Shank, Micrograin Carbide, Y-Coated
Features
- Special flute geometry and multiple helix eliminate vibrations
- Excellent performance for stainless steels, mild steels, cast iron, low/medium hardness materials and all exotic materials up to HRc40
- Advanced coating for superior performance and tool life
Specifications
Cutter Diameter1/2 in
Cutting DirectionRight Hand
FinishY-Coated
Flute TypeSpiral
Helix Angle36 deg
Length of Cut1 in
MaterialMicrograin Carbide
Number of Flutes4
Overall Length3 in
SeriesUGMG53 V7 PlusA
Shank Diameter1/2 in
Shank TypePlain
TypeBall Nose Center Cut Imperial Standard Length
