YG-1 YG1 99625

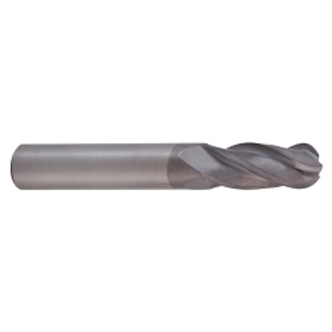

YG-1 99625 D-Power EI106 Ball Nose Center Cut High Performance Imperial Regular Length End Mill, 1/4 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, Diamond Coated
Invoice description:
End Mill Ball 1/4 4flt Diamond Coated Carb
In stock
(3)
YG-1 End Mill, Ball Nose Center Cut High Performance Imperial Regular Length, Series: 3400, 1/4 in Cutter Dia, 2-1/2 in Overall Length, 3/4 in Length of Cut, 4 Flutes, Spiral Flute, 1/4 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Plain Shank, Micrograin Carbide, Diamond Coated
Features
- Higher hardness of film and excellent wear-resistance increase the tool life surprisingly
- Ultra fine film of YG-1s diamond coated carbide ball end mills ensure the smooth and excellent surface on work materials
- High performance on graphite, wrought aluminum, bakelite, plastics, wood, brass and more
- YG-1s diamond coated carbide ball end mills may have good result for the machining of non-ferrous metals and non-metallic materials
Specifications
Cutter Diameter1/4 in
Cutting DirectionRight Hand
FinishDiamond Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/4 in
MaterialMicrograin Carbide
Number of Flutes4
Overall Length2-1/2 in
SeriesD-Power EI106
Shank Diameter1/4 in
Shank TypePlain
TypeBall Nose Center Cut High Performance Imperial Regular Length
