Precision Twist Drill UTD 42816

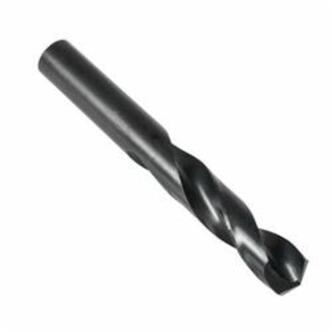

Precision Twist Drill 5999408 R42C General Purpose Stub Length Drill, P Drill - Letter, 0.323 in Drill - Decimal Inch, HSS, Steam Tempered
Invoice description:
P Hd Scr Mach Drl R42c Hss Stm Ox 135d 4603 Hss Brt Cntrsk Ansi 1fl 1/2 Inch 5999408
UPC: 086071428165
UNSPSC:
23241606
Manufacturer PN: 5999408
$8.84 EA
Factory OrderEstimated to ship in 14 days
Precision Twist Drill Stub Length Drill, General Purpose, Series: R42C, Imperial, P Drill - Letter, 0.323 in Drill - Decimal Inch, 2-15/16 in Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 1-11/16 in Flute Length, 0.3228 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Tempered, Dark Gray, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials and Hard Materials
Features
- Low thrust design self-centering split point for easier penetration
- Steam oxide surface treatment for increased wear resistance and lubricity
Specifications
ApplicationFor machining operations in screw machines
Applicable MaterialsSteel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials and Hard Materials
ColorDark Gray
Cutting Depth2.5XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.323 in
Drill Size - LetterP
FinishSteam Tempered
Flute Length1-11/16 in
Flute TypeSpiral
MaterialHSS
Number of Flutes2
Overall Length2-15/16 in
Point Angle135 deg
Point TypeSplit/Self-Centering
SeriesR42C
Shank Size0.3228 in
Shank TypeStraight
TypeGeneral Purpose
Additional Information
Standards/ApprovalANSI Specified|NAS 907 Type C|CSA Approved
Country of OriginBR
