Chicago Hardware CHF EB 3/8X6

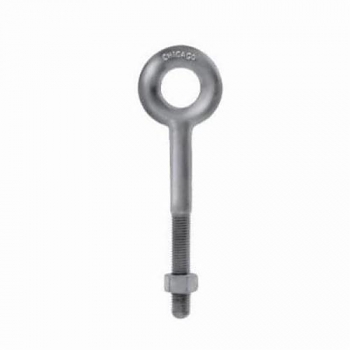

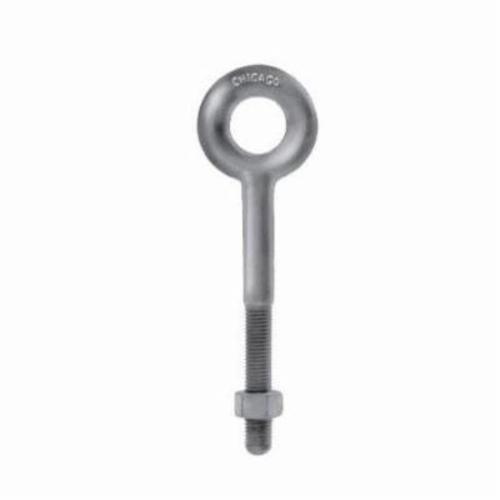

Chicago Hardware 08051 4 Regular Pattern Eye Bolt, 3/8 in, 6 in L Shank, Heat Treated Drop Forged Steel, Hot Dipped Galvanized
Invoice description:
Bolt Eye Drop Forged Reg Hot Galvanized
UPC: 098441080514
UNSPSC:
31161610
Manufacturer PN: 08051 4
$9.84 EA
Factory OrderEstimated to ship in 19 days
Chicago Hardware Eye Bolt, Regular Pattern, Measurement System: Imperial, 3/8 in Thread, 6 in Shank Length, Heat Treated Drop Forged Steel, Hot Dipped Galvanized, 3/4 in ID Eye, 1-1/2 in OD Eye, Machine Thread, 7-1/2 in Overall Length, 1200 lb Working Load, 3 in Thread Length
Features
- Machine thread eye bolts are threaded national course before galvanizing and assembled with hex nuts tapped oversize
- Loads are based on a safety factor of 5 to 1
- When tested all eye bolts are pulled at a uniform rate of speed in a direct tension
Specifications
Diameter - Thread Size3/8 in
FinishHot Dipped Galvanized
Inside Eye Diameter3/4 in
MaterialHeat Treated Drop Forged Steel
Measurement SystemImperial
Outside Eye Diameter1-1/2 in
Overall Length7-1/2 in
Shank Length6 in
Thread Length3 in
Thread TypeMachine
TypeRegular Pattern
Working Load1200 lb
Additional Information
Standards/ApprovalTAA Compliant
Country of OriginUS
