Chicago Hardware CHF E-3

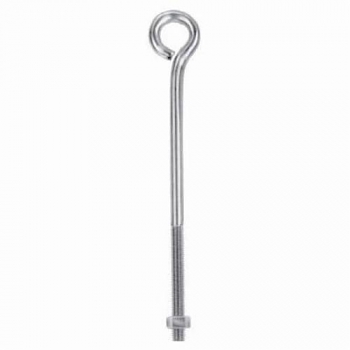

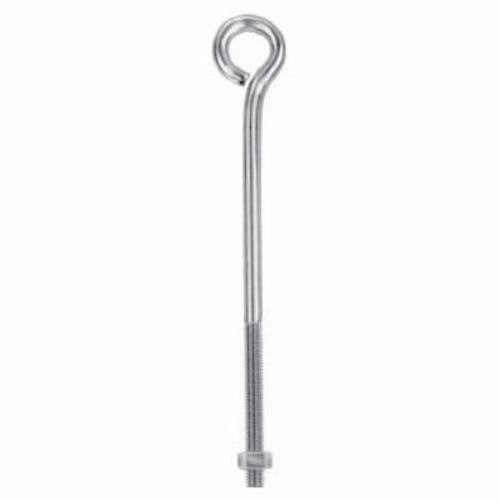

Chicago Hardware 07055 3 Turned Eye Bolt, 1/4-20, 2 in L Shank, Low Carbon Steel, Zinc Plated
Invoice description:
Bolt Turned Eye 1/4x2 Zinc Plated
In stock
(14)
Chicago Hardware Turned Eye Bolt, Measurement System: Imperial, 1/4-20 Thread, 2 in Shank Length, Low Carbon Steel, Zinc Plated, 1/2 in ID Eye, 15/16 in OD Eye, Machine Thread, 3 in Overall Length, 74 lb Working Load, 1-1/4 in Thread Length
Features
- Turned eye bolts are manufactured from low carbon cold drawn steel wire and are supplied with NC rolled machine threads with one hex nut unassembled
- Rust preventive finishes or self-colored available on a special basis
- 1/4 in Dia shank

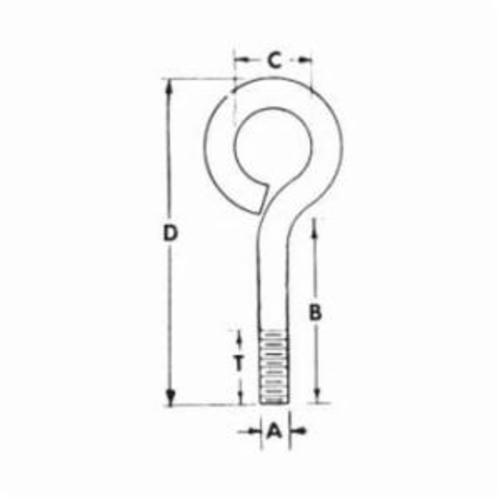

Specifications
Diameter - Thread Size1/4-20
FinishZinc Plated
Inside Eye Diameter1/2 in
MaterialLow Carbon Steel
Measurement SystemImperial
Outside Eye Diameter15/16 in
Overall Length3 in
Shank Length2 in
Thread Length1-1/4 in
Thread TypeMachine
Working Load74 lb
Additional Information
Standards/ApprovalTAA Compliant
Country of OriginUS
