TECHNIKS TECN 22253

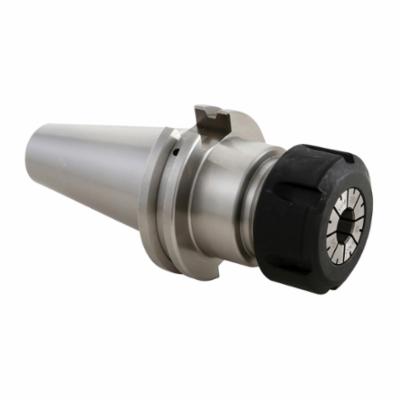

TECHNIKS 22253 Single End V-Flange Collet Chuck, Tapered Shank, ER32 Collet System, ER32 Chuck

Invoice description: Holder Collet Chuck C40 Er32 2.76

UNSPSC: 27112807
Manufacturer PN: 22253
$215.08 EA
Factory Order
Estimated to ship in 7 days
QTY:

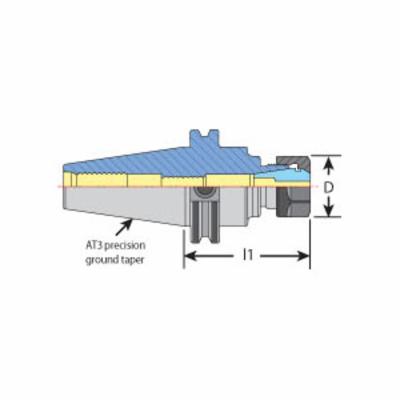

TECHNIKS Collet Chuck, Single End V-Flange, 5.44 in Overall Length, 2.63 in Shank Length, 1.969 in Diameter Nose, 2.76 in Head Length/Projection, ER32 Collet System, Tapered Shank, ER32 Chuck, CAT40 Taper, 1.97 in Diameter Collet Nut, Yes Through Coolant

  • Features

  • Collet chucks are balanced to 25000 rpm at G2.5 tolerance
  • They are individually lab tested for accuracy and balance and come with their individual performance report
  • Holders achieve 0.0001 in or less T.I.R as measured from the taper to the collet pocket
  • PowerCOAT nut included for 75% more clamping power

Specifications

ApplicationFor drilling, milling and high speed applications
Chuck SizeER32
Collet Nut Diameter1.97 in
Collet SystemER32
Head Length/Projection2.76 in
Nose Diameter1.969 in
Overall Length5.44 in
Shank Length2.63 in
Shank TypeTapered
Taper SizeCAT40
Through Coolant (Yes/No)Yes
TypeSingle End V-Flange

Additional Information

IncludesPowerCOAT Slotted Nut
Country of OriginTW
