TECHNIKS TECN 16167

TECHNIKS 16167 Single End V-Flange Collet Chuck, Tapered Shank, ER20 Collet System, ER20 Chuck

Invoice description: Holder Bt40 Er 20-150mm

UNSPSC: 27112807
Manufacturer PN: 16167
$231.46 EA
In stock (7)
QTY:

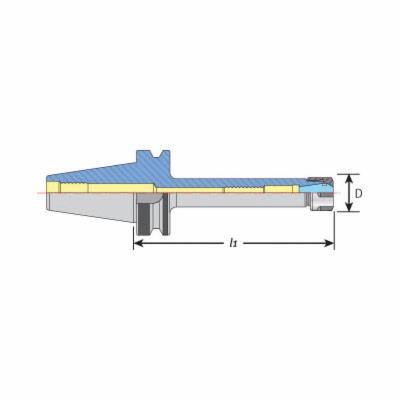

TECHNIKS Collet Chuck, Single End V-Flange, 8.48 in Overall Length, 5.83 in Shank Length, 1.339 in Diameter Nose, 5.91 in Head Length/Projection, ER20 Collet System, Tapered Shank, ER20 Chuck, BT40 Taper, 1.38 in Diameter Collet Nut, Yes Through Coolant

  • Features

  • Collet chucks are balanced to 25000 rpm at G2.5 tolerance
  • They are individually lab tested for accuracy and balance and come with their individual performance report
  • Holders achieve 0.0001 in or less T.I.R as measured from the taper to the collet pocket
  • Taper is ground to AT3 accuracy or better

Specifications

ApplicationFor drilling, milling and high speed applications
Chuck SizeER20
Collet Nut Diameter1.38 in
Collet SystemER20
Head Length/Projection5.91 in
Nose Diameter1.339 in
Overall Length8.48 in
Shank Length5.83 in
Shank TypeTapered
Taper SizeBT40
Through Coolant (Yes/No)Yes
TypeSingle End V-Flange

Additional Information

IncludesPowerCOAT Hex Nut
Country of OriginTW
