Power Team SPX C106C

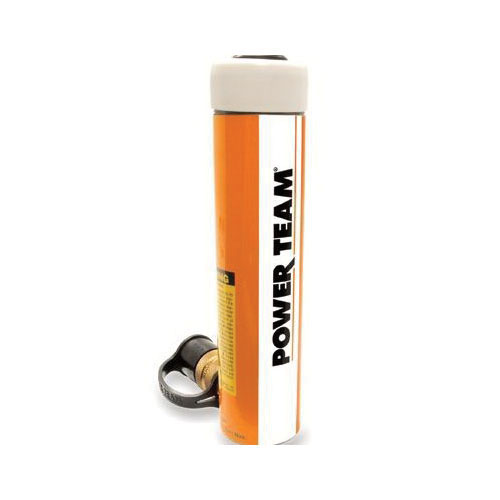

Power Team C106C C Series General Purpose Spring-Return Single-Acting Hydraulic Cylinder, 10 ton Load, 9-3/4 in H Min, 15.88 in H Max, 6.13 in
Invoice description:
Cylinder 10-ton 6-1/8" Stroke "cylinder 10-ton 6-1/8"stroke"
Factory Order
Power Team Hydraulic Cylinder, General Purpose Spring-Return Single-Acting, Series: C Series, 10 ton Load, 9-3/4 in Minimum Height, 15.88 in Maximum Height, 6.13 in Piston Stroke, 2-1/4 in Base Width
Features
- Rugged, high quality cylinder used for lifting and pressing
- Aluminum bronze bearing reduces wear caused by off-center loads
- Maximum sized springs speed piston return and increase spring life
- Solid steel cylinder body for durability
- Chrome plated piston rod resists wear and corrosion
- Wide range of accessories available to thread onto piston rod, collar, or onto cylinder base
- Base mounting holes standard on 5 through 55 ton cylinder
Specifications
ApplicationLifting and Pressing
Base Width2-1/4 in
Load Capacity10 ton
Maximum Height15.88 in
Minimum Height9-3/4 in
Piston Stroke6.13 in
SeriesC Series
TypeGeneral Purpose Spring-Return Single-Acting
Additional Information
IncludesModel 201362 Cylinder Load Cap, 3/8 in NPTF Female Half Coupler
Standards/ApprovalANSI/ASME B30.1|CE Certified
