JET JET JHJ-12-1/2

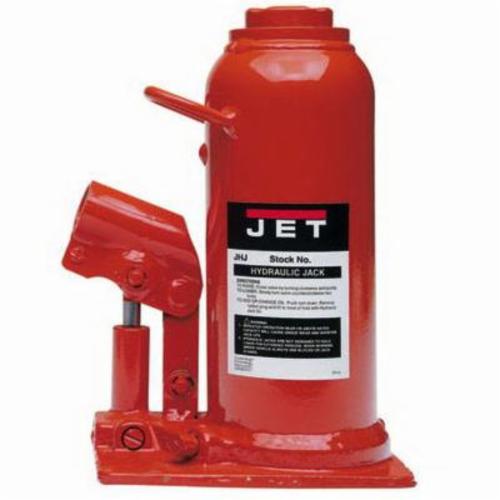

JET JT9-453312 JHJ Heavy Duty Hydraulic Bottle Jack, 12 ton Load, 9-1/2 in H Min, 18-1/2 in H Max, 5-7/8 in, 3-1/8 in L Screw
Invoice description:
Jack Hydraulic 12-1/2 To N 453312
In stock
(1)
JET, JT9-453312, Hydraulic Bottle Jack, Heavy Duty, Series: JHJ, 12 ton Load, 9-1/2 in Minimum Height, 18-1/2 in Maximum Height, 5-7/8 in Piston Stroke, 3-1/8 in Screw Length, 4-1/8 in Base Width, 6-1/2 in Base Length
Features
- Precision machined and polished cylinders provide non-abrasive, leak-free, durable performance
- Heavy duty bases are electrically welded providing a stable platform
- Hydraulic system is protected from damage by internal by-pass mechanism
- Chrome plated piston and ram are corrosion resistant for use in any industrial environment
- Industrial duty construction permits use in extreme climates
- Upright, horizontal or angled operating positions increase versatility
- Lifting, pushing, spreading, bending, pressing or straightening capabilities
Specifications
ApplicationLifting, Pushing, Spreading, Bending, Pressing and Straightening
Base Length6-1/2 in
Base Width4-1/8 in
Load Capacity12 ton
Maximum Height18-1/2 in
Minimum Height9-1/2 in
Piston Stroke5-7/8 in
Screw Length3-1/8 in
SeriesJHJ
TypeHeavy Duty
Additional Information
IncludesPump Handle
Standards/ApprovalANSI/ASME B30.1|PALD-1
Country of OriginJP
Specification Sheet
Owners/user Manual
