Simpson Strong-Tie SIMS THDT75600H

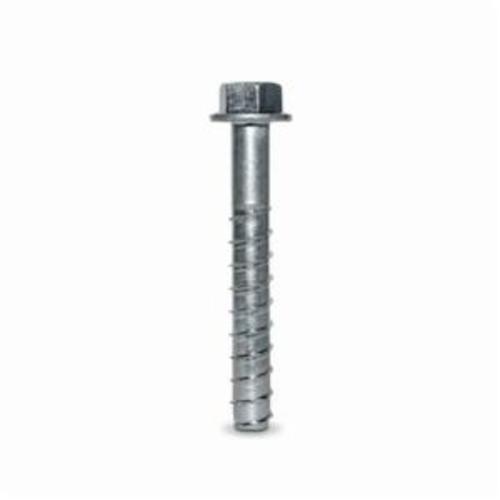

Simpson Strong-Tie THDT75600H Heavy Duty Screw Anchor, 3/4 in Dia, 6 in OAL, Hex Washer Head Drive, Carbon Steel, 5-1/2 in D Min Embedment
Invoice description:
Anchor Titen Hd 3/4"x6" 5/bx
UPC: 707392253303
UNSPSC:
31162101
Manufacturer PN: THDT75600H
$30.42 BX
![](/img/factory-order.png)
Estimated to ship in 7 days
Simpson Strong-Tie Screw Anchor, Heavy Duty, Series: Titen HD, 3/4 in Diameter, 6 in Overall Length, Hex Washer Head Drive, Carbon Steel, 5-1/2 in Minimum Embedment Depth, 3/4 in Drill, Zinc Plated, Applicable Materials: Concrete/Masonry, 1-1/8 in Head, 10 in Maximum Work Thickness, 16840 lb Shear Strength, 45540 lb Tensile Strength
Features
- Code listed under IBC/IRC in accordance with ICC-ES AC193 for cracked and uncracked concrete per ICC-ES ESR-2713
- Code listed under IBC/IRC in accordance with ICC-ES AC106 for masonry per ICC-ES ESR-1056
- Qualified for static and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional size
- Specialized heat treating process creates tip hardness for better cutting without compromising the ductility
- No special drill bit required, designed to install using standard-sized ANSI tolerance drill bits
- Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors
- Hex washer head requires no separate washer and provides a clean installed appearance
- Removable - ideal for temporary anchoring or applications where fixtures may need to be moved
Specifications
ApplicationFormwork and Bracing
Applicable MaterialsConcrete/Masonry
Diameter3/4 in
Drill Size3/4 in
FinishZinc Plated
Head Drive TypeHex Washer
Head Size1-1/8 in
MaterialCarbon Steel
Maximum Work Thickness10 in
Minimum Embedment Depth5-1/2 in
Overall Length6 in
SeriesTiten HD
Shear Strength16840 lb
Tensile Strength45540 lb
TypeHeavy Duty
