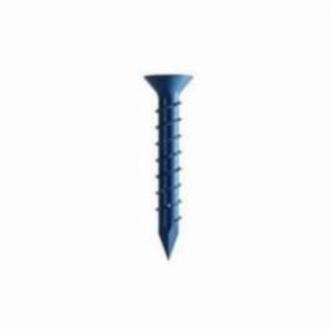

Simpson Strong-Tie SIMS TTN25134PF

Simpson Strong-Tie TTN25134PF Screw Anchor, 1/4 in Dia, 1-3/4 in OAL, Flat/Phillips Head Drive, Carbon Steel, 1 in D Min Embedment

Invoice description: 1/4" X 1-3/4" Tapcon Fla Hd Phil Masonry Fastene

UPC: 044315672705
UNSPSC: 31162101
Manufacturer PN: TTN25134PF
Factory Order
Estimated to ship in 14 days
--Price Unavailable--


Simpson Strong-Tie Screw Anchor, Series: Titen, 1/4 in Diameter, 1-3/4 in Overall Length, Flat/Phillips Head Drive, Carbon Steel, 1 in Minimum Embedment Depth, 3/16 in Drill, Zinc Plated, Applicable Materials: Concrete/Masonry, 250 lb Shear Strength, 150 lb Tensile Strength

  • Features

  • Blue color
  • 1242 lb ultimate shear load
  • 740 lb ultimate tension load
  • 1-1/2 in critical edge distance
  • 3 in critical spacing
  • Zinc plated with a baked on ceramic

Specifications

ApplicationFor use in dry and interior environment applications
Applicable MaterialsConcrete/Masonry
Diameter1/4 in
Drill Size3/16 in
FinishZinc Plated
Head Drive TypeFlat/Phillips
MaterialCarbon Steel
Minimum Embedment Depth1 in
Overall Length1-3/4 in
SeriesTiten
Shear Strength250 lb
Tensile Strength150 lb

Additional Information

IncludesDrill Bit
Standards/ApprovalFlorida FL 2355.1
