SGS SGS 51930

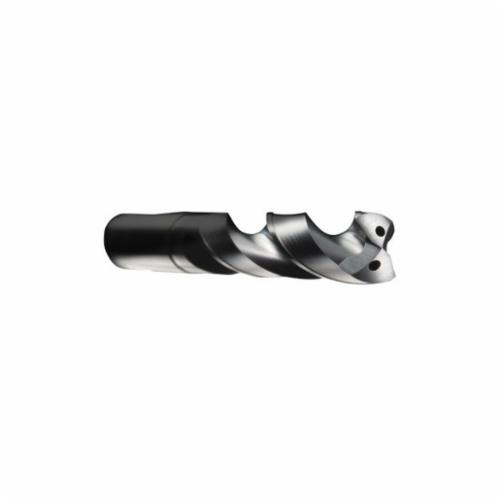

SGS Jobber Length Drill Bit, High Performance, Series: Ice-Carb 140, Imperial, 7/16 in Drill - Fraction, 0.4375 in Drill - Decimal Inch, 4.64 in Overall Length, 5XD Cutting Depth, 2 Flutes, Right Spiral Flute, 2.79 in Flute Length, 0.47 in Dia x 1.77 in L Shank, Common Shank, 140 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, Micro Grain Solid Carbide Cutting Edge, Yes Through Coolant, Micro Grain Solid Carbide, AlTiN Coated, Applicable Materials: Steel, Stainless Steel, Cast Iron, High Temperature Alloy, Titanium, Non-Ferrous Metals and Hardened Steel

• Features

• Coolant through design promotes controlled and consistent operating temperatures improving coolant flow to the cut while maintaining strength, increases tool life at increased operating parameters
• High performance flute design optimized open fluting, improved surface finish through effective chip evacuation
• Polished Ti-NAMITE-A coating reduces friction between the chip and tool preventing the impediment of chip flow
• Decreased machine loads associated with chip clogging
• Reduce friction reduces heat and abrasion wear
• High penetration 140 deg point geometry split point geometry for improved drill penetration and accuracy, cam relief drill point and self-centering design with high penetration capabilities
• Engineered cutting edges precisely ground with a curvature that allows efficient chip creation and control, controlled edge honing for longevity and negative corner position strengthens and protects
