SGS SGS 51011

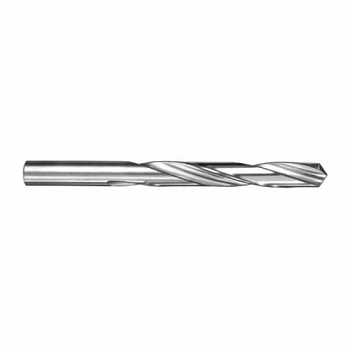

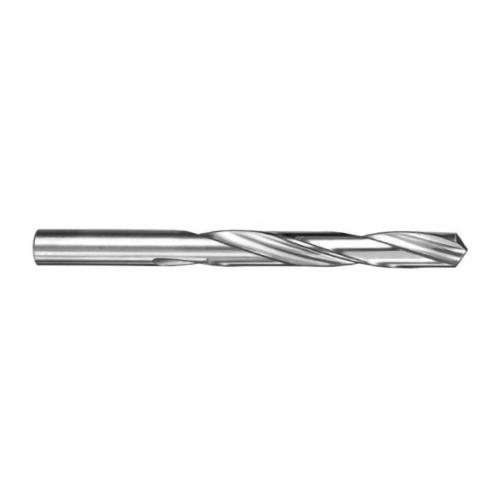

SGS 51011 101 General Purpose Jobber Length Drill Bit, #11 Drill - Wire, 0.191 in Drill - Decimal Inch, 118 deg Point, Micro Grain Solid Carbide, Uncoated
Invoice description:
Drill Bit #11 Solid Carb Ide Ser 101
UPC: 691781510118
UNSPSC:
23241605
Manufacturer PN: 51011
$32.80 EA
Factory OrderEstimated to ship in 7 days
SGS Jobber Length Drill Bit, General Purpose, Series: 101, Imperial, #11 Drill - Wire, 0.191 in Drill - Decimal Inch, 2-3/4 in Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 1-5/8 in Flute Length, 0.191 in Shank, Straight Shank, 118 deg Point, 4-Facet Point, Right Hand Cutting Direction, Micro Grain Solid Carbide Cutting Edge, No Through Coolant, Micro Grain Solid Carbide, Uncoated, Applicable Materials: Cast Iron, Composites, Hardened Steel, High Temperature Alloy, Non-Ferrous Metals, Plastic, Stainless Steel, Steel and Titanium
Features
- External coolant
Specifications
ApplicationAerospace, Automotive, Castings and Foundries, General Engineering, Mold and Die, Medical and Power Generation
Applicable MaterialsCast Iron, Composites, Hardened Steel, High Temperature Alloy, Non-Ferrous Metals, Plastic, Stainless Steel, Steel and Titanium
Cutting Depth5XD
Cutting DirectionRight Hand
Cutting Edge MaterialMicro Grain Solid Carbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.191 in
Drill Size - Wire#11
FinishUncoated
Flute Length1-5/8 in
Flute TypeSpiral
MaterialMicro Grain Solid Carbide
Number of Flutes2
Overall Length2-3/4 in
Point Angle118 deg
Point Type4-Facet
Series101
Shank Size0.191 in
Shank TypeStraight
Through Coolant (Yes/No)No
TypeGeneral Purpose
Additional Information
Standards/ApprovalDIN 338
Country of OriginUS
Sds
Rohs
