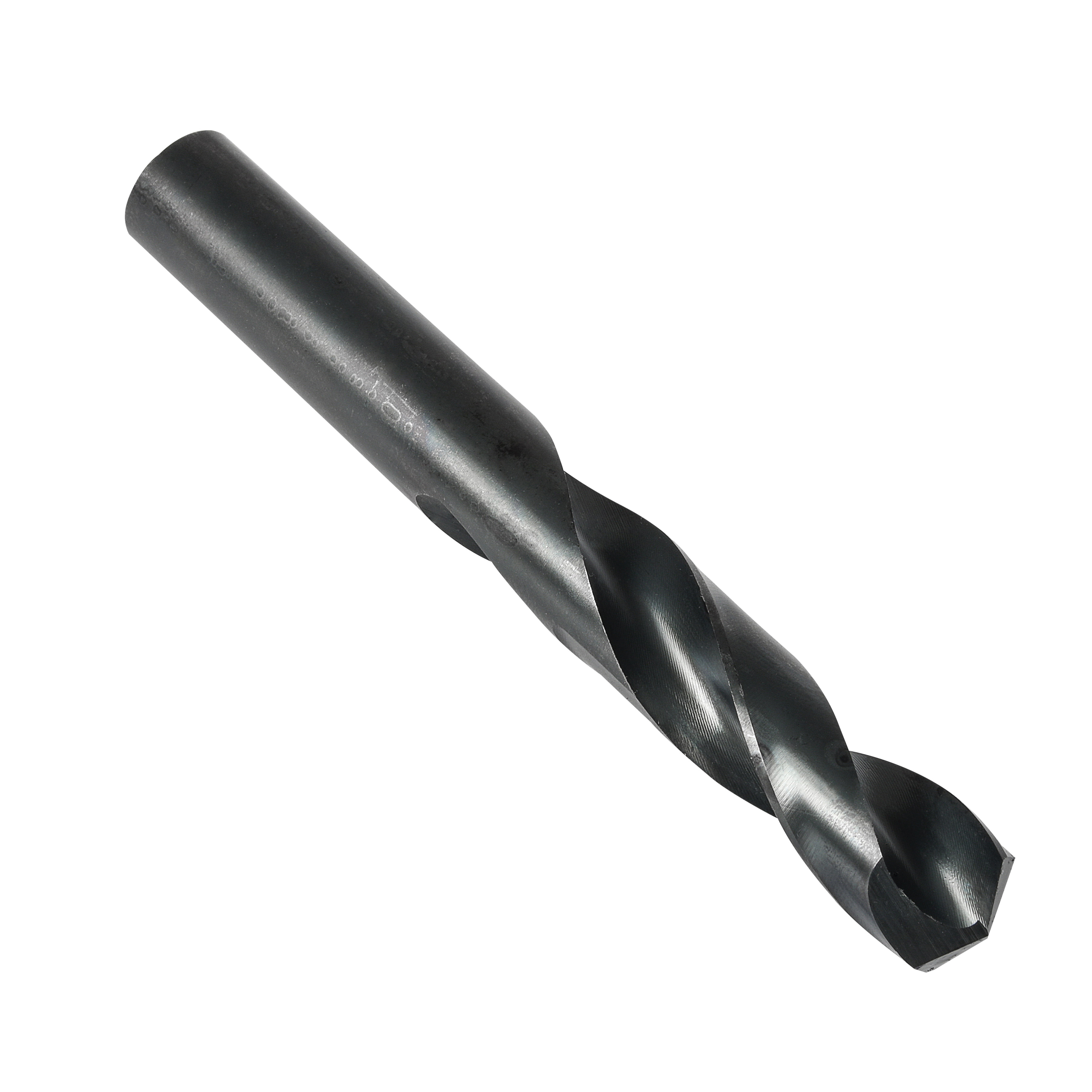

Precision Twist Drill SMD 15/64

Precision Twist Drill 040815 R40C Heavy Duty Screw Machine Drill, 15/64 in Drill - Fraction, 0.2344 in Drill - Decimal Inch, HSS, Steam Tempered

Invoice description: Drill 15/64 Screw Mach Hss Stm Ox

UPC: 086071408150
UNSPSC: 23241606
Manufacturer PN: 040815
$4.02 EA
Factory Order
Estimated to ship in 7 days
QTY:


Precision Twist Drill Screw Machine Drill, Heavy Duty, Series: R40C, Imperial, 15/64 in Drill - Fraction, 0.2344 in Drill - Decimal Inch, 2-7/16 in Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 1-5/16 in Flute Length, 15/64 in Shank, Straight Shank, 135 deg Point, Self-Centering/Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Tempered, Dark Gray, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials and Hard Materials

  • Features

  • Low thrust design self-centering split point for easier penetration
  • Steam oxide surface treatment for increased wear resistance and lubricity

Specifications

ApplicationFor machining operations in screw machines
TypeHeavy Duty
SeriesR40C
Drill Diameter MeasuImperial
Drill Size - Fractio15/64 in
Drill Size - Decimal0.2344 in
Overall Length2-7/16 in
Cutting Depth2.5XD

Additional Information

Standards/ApprovalANSI Specified|NAS 907 Type C
Country of OriginBR
