Harvey Tool HARV 875231-C3

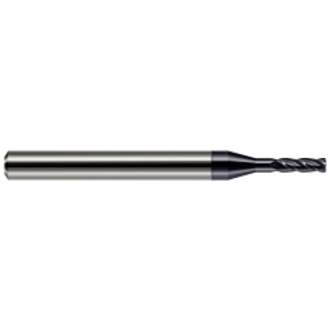

Harvey Tool 875231-C3 Center Cut Standard Length Miniature End Mill, 0.031 in Dia Cutter, 0.005 in Corner Radius, 3/32 in Length of Cut, (4) Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, AlTiN

Manufacturer PN: 875231-C3
Factory Order
QTY:


Harvey Tool, 875231-C3, Miniature End Mill, Center Cut Standard Length, 0.031 in Diameter Cutter, 0.005 in Corner Radius, 1-1/2 in Overall Length, 3/32 in Length of Cut, 4 Flutes, Upcut Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, Solid Carbide, AlTiN

  • Features

  • Corner radius for improved strength
  • Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
  • Overall Reach 0.1560 in (5/32)
  • Reach Multiple (5x)

Specifications

Corner Radius0.005 in
Cutter Diameter0.031 in
Cutting DirectionRight Hand
FinishAlTiN
Flute TypeUpcut
Helix Angle30 deg
Length of Cut3/32 in
MaterialSolid Carbide
Number of Flutes4
Overall Length1-1/2 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeCenter Cut Standard Length
