Harvey Tool HARV 62462-C3

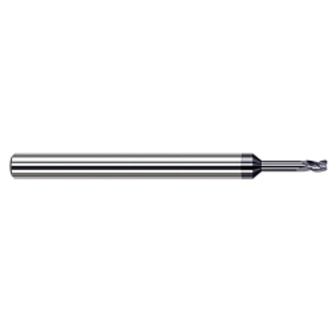

Harvey Tool 62462-C3 Variable Helix End Mill, 0.062 in Dia Cutter, 0.01 in Corner Radius, 3/32 in Length of Cut, (3) Flutes, 1/8 in Dia Shank, 2-1/2 in OAL, AlTiN
Invoice description:
Crem 1/16x.01x3/32 5/16lbs 3fl Crem 1/16x.01x3/32 5/16lbs 3fl
Manufacturer PN: 62462-C3
$87.00 EA
Factory OrderEstimated to ship in 8 days
Harvey Tool, 62462-C3, Variable Helix End Mill, 0.062 in Diameter Cutter, 0.01 in Corner Radius, 2-1/2 in Overall Length, 3/32 in Length of Cut, 3 Flutes, Upcut Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 37 deg Helix Angle, Cylindrical Shank, Solid Carbide, AlTiN
Features
- Reduced neck diameter to avoid heeling
- Variable helix design (approx. 37) reduces chatter and harmonics and increases material removal rates
- Corner radius for improved strength
- Coating provides improved lubricity and heat resistance
- H6 shank tolerance for high precision tool holders
- Applicable Materials are Cast Iron, Steel, Stainless Steel
- Overall Reach 0.3120 in (5/16)
Specifications
Corner Radius0.01 in
Cutter Diameter0.062 in
Cutting DirectionRight Hand
FinishAlTiN
Flute TypeUpcut
Helix Angle37 deg
Length of Cut3/32 in
MaterialSolid Carbide
Number of Flutes3
Overall Length2-1/2 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeCenter Cut Stub Length Variable Helix
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
Sds
