Harvey Tool HARV 874410-C8

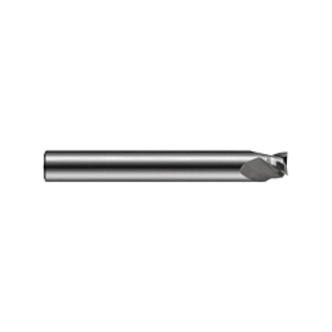

Harvey Tool 874410-C8 Picatinny Form Cutter, 0.21 in Dia Cutter, 0.005 in Corner Radius, 0.118 in Length of Cut, (3) Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, TiB2
Invoice description:
Picatinny .21x.005rx.118 3fl Tib2
Manufacturer PN: 874410-C8
$87.28 EA
Factory OrderEstimated to ship in 7 days
Harvey Tool, 874410-C8, Picatinny Form Cutter, 0.21 in Diameter Cutter, 0.005 in Corner Radius, 2-1/2 in Overall Length, 0.118 in Length of Cut, 3 Flutes, Upcut Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 35 deg Helix Angle, Cylindrical Shank, Solid Carbide, TiB2
Features
- Diameter allows for a single pass to create the groove
- Stub flute length improves strength
- Cutting on transition allows slight edge break at top of groove
- High helix and optimized geometry improves performance
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Stainless Steel, Wood, Composites
Specifications
ApplicationOptimized for the grooves across the Picatinny Rail
Corner Radius0.005 in
Cutter Diameter0.21 in
Cutting DirectionRight Hand
FinishTiB2
Flute TypeUpcut
Helix Angle35 deg
Length of Cut0.118 in
MaterialSolid Carbide
Number of Flutes3
Overall Length2-1/2 in
Shank Diameter1/4 in
Shank TypeCylindrical
TypeCenter Cut
Additional Information
Country of OriginUS
