Campbell CAM 7339754

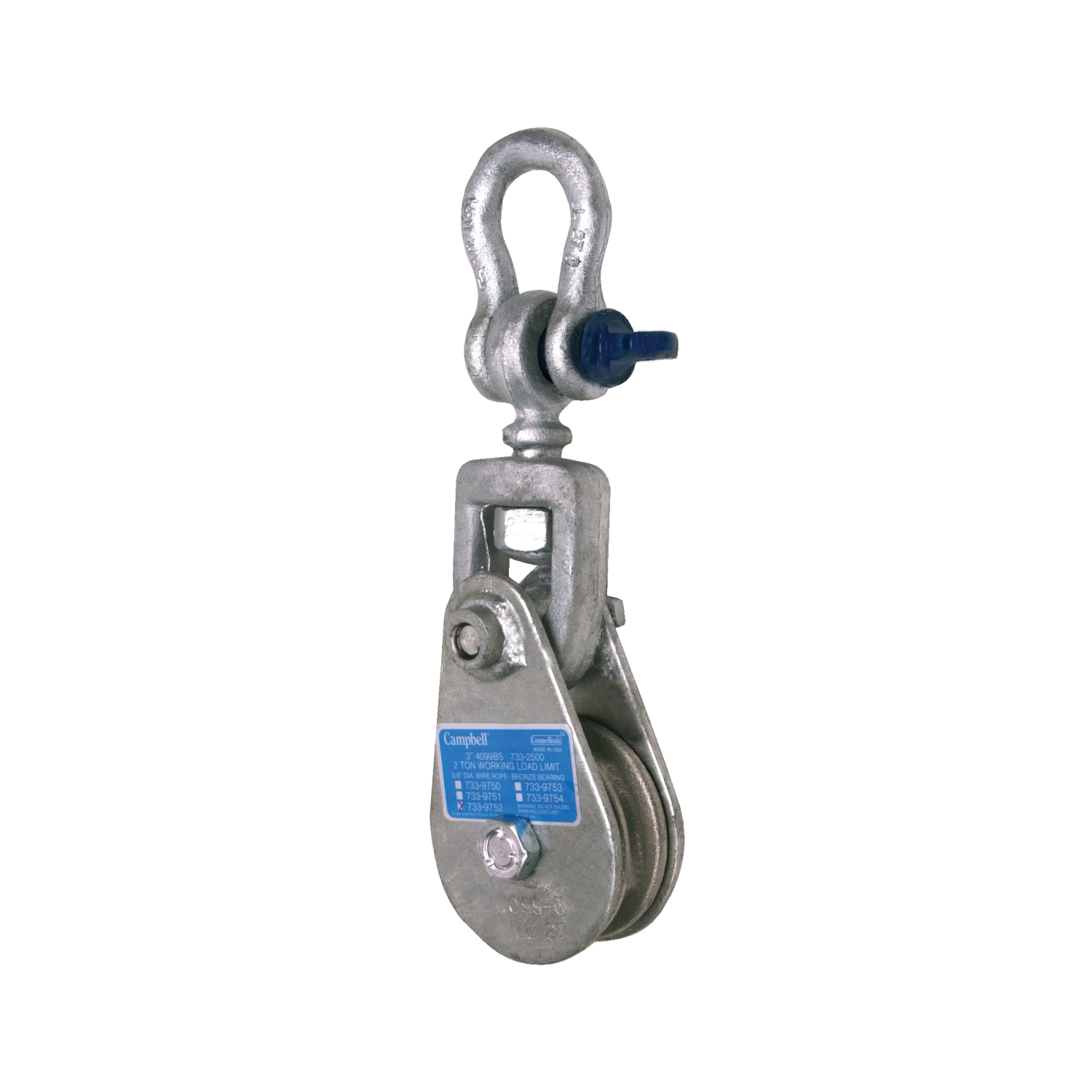

Campbell 7339754 4099V Drop Side WR Snatch Block, Manila Rope Cable, 3/8 in, 2 ton Load, 3/4 in ID x 3 in OD

Invoice description: Block Snatch 3" Sl 3/8" Wr 4099v

UPC: 020418124754
UNSPSC: 24101613
Manufacturer PN: 7339754
$300.88 EA
Factory Order
Estimated to ship in 30 days
QTY:


Campbell Snatch Block, Drop Side WR, Series: 4099V, Manila Rope Cable, 3/8 in Maximum Cable, 2 ton, 3 in Sheave Outside Dia, 3/4 in Sheave Inside Dia, Self-Lubricating Bronze Bushing Bearing, Steel Sheave

  • Features

  • For wire rope
  • Steel shells with steel sheaves
  • Drop forged fittings
  • 3 in and 4-1/2 in blocks have bronze self-lubricating bushings, 6 in have grooved bronze bushings with pressure grease lubrication
  • Galvanized finish
  • Special feature - The bolt cannot be lost when the block is opened
  • Connections are easily interchangeable
  • Working loads are resultant working loads
  • Do not exceed the working load limit
  • Swivel eye with screw pin shackle "V" fitting type

Specifications

BearingsSelf-Lubricating Bronze Bushing
Cable TypeManila Rope
Load Capacity2 ton
Maximum Cable Size3/8 in
Series4099V
Sheave Inside Diameter3/4 in
Sheave MaterialSteel
Sheave Outside Diameter3 in
TypeDrop Side WR

Additional Information

WarrantyLifetime Limited
Country of OriginUS
