Campbell CAM 6250105

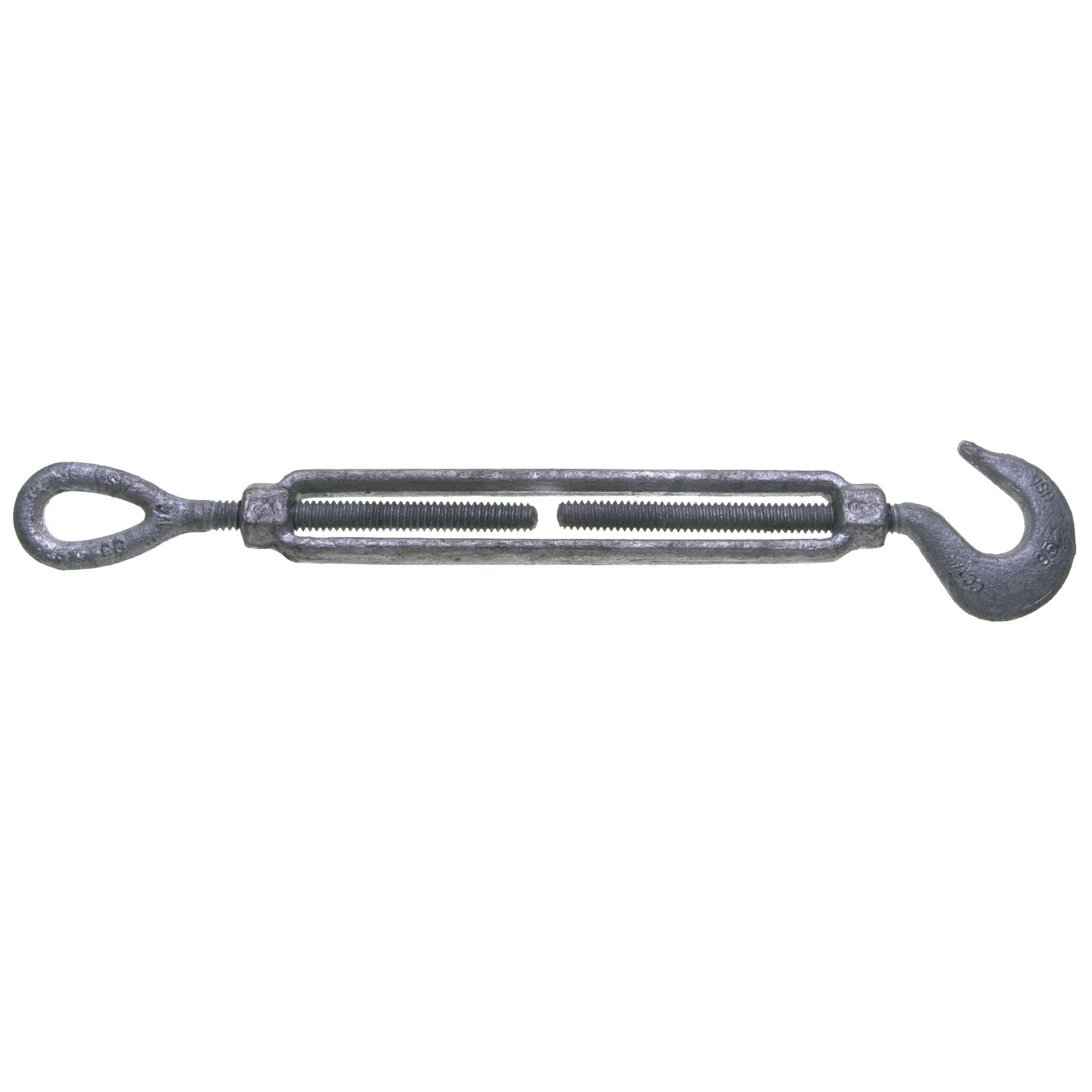

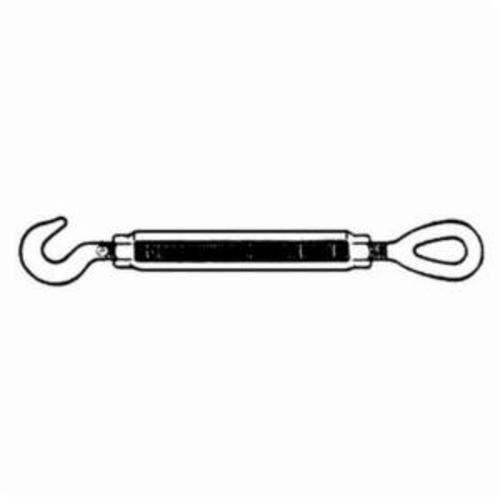

Campbell 6250105 778-G Turnbuckle, Hook/Eye, 1/2 in Thread, 1500 lb Working, 6 in Take Up, 13-1/8 in L Close, Drop Forged Carbon Steel

Invoice description: Turnbuckle Hk/eye 1/2x6" 778g Galvanized

UPC: 020418086595
UNSPSC: 31162405
Manufacturer PN: 6250105
$49.32 EA
Factory Order
Estimated to ship in 30 days
QTY:


Campbell Turnbuckle, Series: 778-G, Hook/Eye End/End, 1/2 in Thread Diameter, 1500 lb Working Load, 6 in Take Up, 13-1/8 in Close Length, Drop Forged Carbon Steel, Hot Galvanized Finish

  • Features

  • 5:1 design factor
  • Turnbuckles are designed for a static load
  • In loads where there is vibration, lock nuts (jam nuts) should be used to prevent the connection from turning or loosening

Specifications

ApplicationFor use with guy wires and static load
Closed Length13-1/8 in
End/EndHook/Eye
FinishHot Galvanized
MaterialDrop Forged Carbon Steel
Series778-G
Take Up6 in
Thread Diameter1/2 in
Working Load1500 lb

Additional Information

Standards/ApprovalASTM A153/F1145|Type 1|Grade 1|Class F
Country of OriginUS
