Campbell CAM 5413235

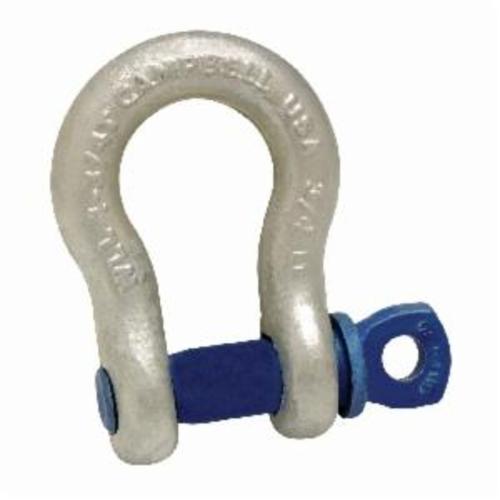

Campbell 5413235 Anchor Shackle, 35 ton Load, 2 in, 2-1/4 in Dia Screw Pin, Galvanized

Invoice description: Shackle Anchor 2" Bolt T Ype M658g Gal

UPC: 020418076480

UNSPSC: 24101641

Manufacturer PN: 5413235

^$635.80 EA

Factory Order
Estimated to ship in 60 days

enlarge

Product Overview

Campbell Anchor Shackle, 35 ton, 2 in, 2-1/4 in Pin Dia, Screw Pin, 7-3/4 in Inner Length, 5-3/4 in Inner Width, 3-1/4 in Opening, 4-7/8 in Eye Outer Size, Drop Forged Carbon Steel Body, Alloy Steel Pin, Galvanized

Features
Working load limit, size, manufacture name, date code and USA permanently marked on each shackle
Statistically tested for impact resistance, tensile strength, hardness, ductility and fatigue
419 series shackles meet or exceed all manufacturing requirements of the ASME B30.26 "rigging hardware", these include the material ductility requirement (Section 26-1.1.2), the design factor requirement (Section 26.1.2), the identification requirement (Section 26-1.5.1) and the effective temperature range (Section 26-1.6.1), the shackles can be proof tested in accordance with Section 26-1.4
6:1 design factor
Pins and bolts are heat treated and made of alloy steel
Do not exceed the working load limit
6:1 design factor
Pins and bolts are heat treated and made of alloy steel
DO NOT EXCEED THE WORKING LOAD LIMIT
