Campbell CAM 5412435

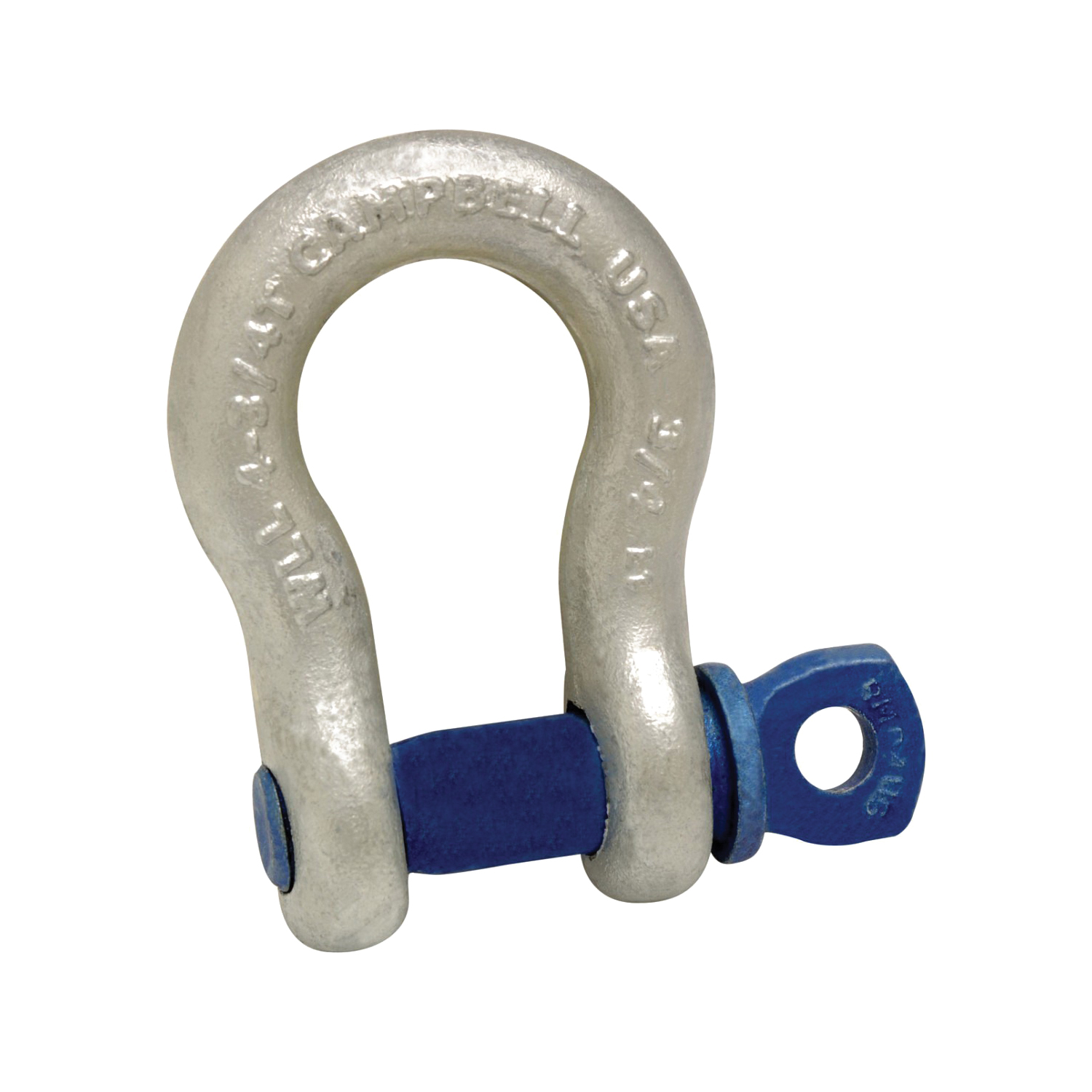

Campbell 5412435 419 Anchor Shackle, 17 ton Load, 1-1/2 in, 1-5/8 in Dia Screw Pin, Galvanized
Invoice description:
Shackle Screw Pin 1-1/2" Hg M657g Gal
In stock
(7)
Campbell Anchor Shackle, Series: 419, 17 ton, 1-1/2 in, 1-5/8 in Pin Dia, Screw Pin, 5-3/4 in Inner Length, 3-7/8 in Inner Width, 2-3/8 in Opening, 3-1/2 in Eye Outer Size, Drop Forged Carbon Steel Body, Alloy Steel Pin, Galvanized
Features
- Working load limit, size, manufacture name, date code and USA permanently marked on each shackle
- Statistically tested for impact resistance, tensile strength, hardness, ductility and fatigue
- 419 series shackles meet or exceed all manufacturing requirements of the ASME B30.26 "rigging hardware", these include the material ductility requirement (Section 26-1.1.2), the design factor requirement (Section 26.1.2), the identification requirement (Section 26-1.5.1) and the effective temperature range (Section 26-1.6.1), the shackles can be proof tested in accordance with Section 26-1.4
- 6:1 design factor
- Pins and bolts are heat treated and made of alloy steel
- Working load limit permanently shown on every shackle
Specifications
Body MaterialDrop Forged Carbon Steel
Eye Outer Size3-1/2 in
FinishGalvanized
Inner Length5-3/4 in
Inner Width3-7/8 in
Load Capacity17 ton
Opening Size2-3/8 in
Pin Diameter1-5/8 in
Pin MaterialAlloy Steel
Pin TypeScrew
Series419
Size1-1/2 in
Additional Information
WarrantyLifetime Limited
Standards/ApprovalFederal Specification RR-C-271, Class 2, Grade A, Type IVA|ASME B30.26|ASTM A153
Country of OriginUS
