Campbell CAM 5411695

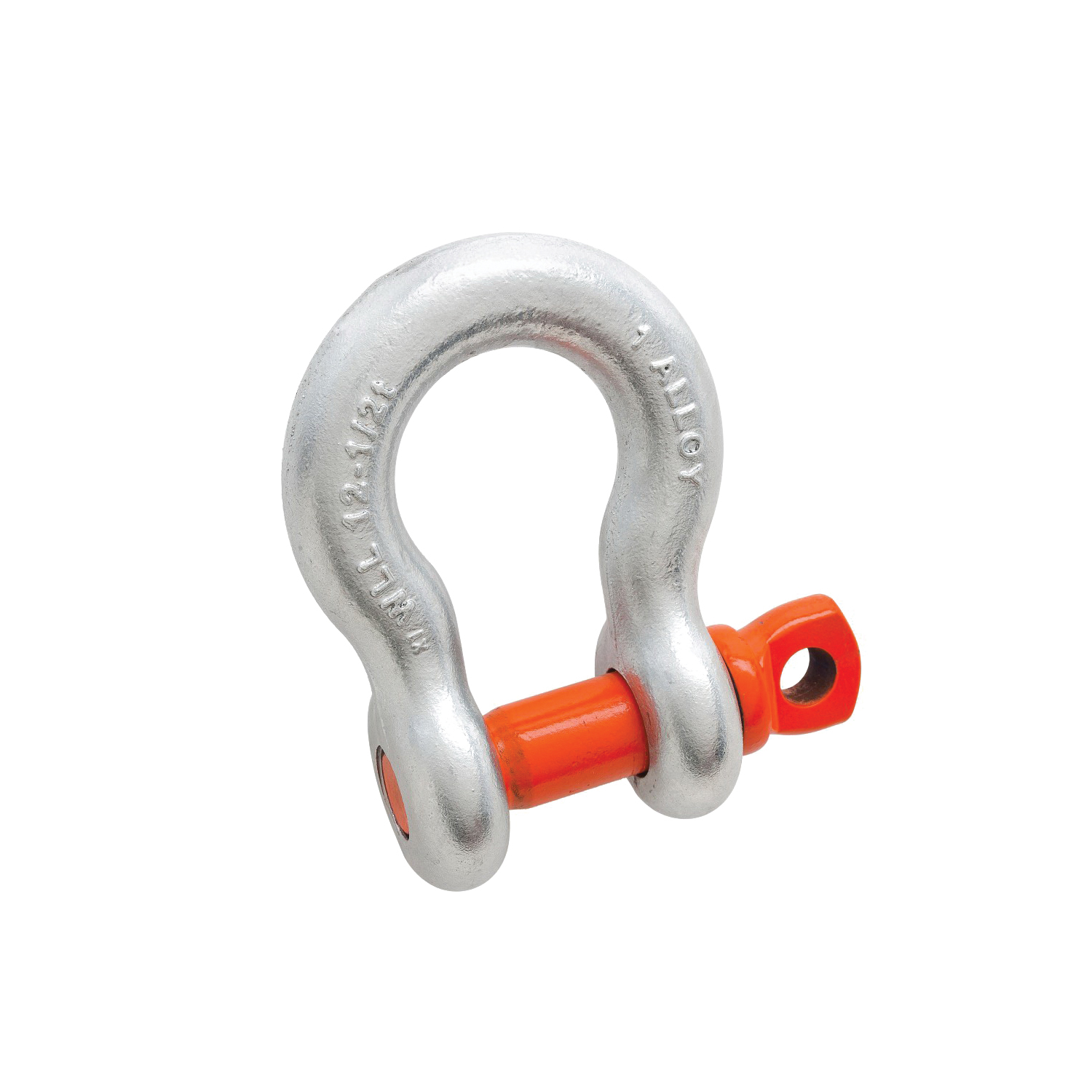

Campbell 5411695 419-A Anchor Shackle, 12.5 ton Load, 1 in, 1-1/8 in Dia Screw Pin, Galvanized

Invoice description: Shackle Anchor 1" Alloy Grade 80

UPC: 020418182167

UNSPSC: 24101641

Manufacturer PN: 5411695

^$88.74 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

Campbell Anchor Shackle, Series: 419-A, 12.5 ton, 1 in, 1-1/8 in Pin Dia, Screw Pin, 3-3/4 in Inner Length, 2-1/2 in Inner Width, 1-11/16 in Opening, 2-3/8 in Eye Outer Size, Drop Forged Alloy Steel Body, Alloy Steel Pin, Galvanized

Features
419 series shackles meet or exceed all manufacturing requirements of the ASME B30.26 "rigging hardware", these include the material ductility requirement (Section 26-1.1.2), the design factor requirement (Section 26.1.2), the identification requirement (Section 26-1.5.1) and the effective temperature range (Section 26-1.6.1), the shackles can be proof tested in accordance with Section 26-1.4
Working load limit, size, manufacture name, date code, "CE" mark and USA permanently marked on each shackle
Statistically tested for impact resistance, tensile strength, hardness, ductility and fatigue
5:1 design factor
Working load limit permanently shown on every shackle
Pins and bolts are heat treated and made of alloy steel and painted orange
