Sandvik Coromant SANC 5727591

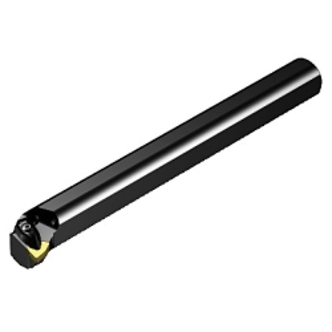

Sandvik Coromant 5727591 T-Max P Indexable Boring Bar, A..DWLNL Toolholder, 1.299 in Dia Min Bore, Left Hand of Holder, 12 in OAL
Invoice description:
Bb A16t-dwlnl 3
Factory Order
Sandvik Coromant Indexable Boring Bar, Series: T-Max P, 1.299 in Minimum Bore, 4 in Maximum Bore Depth, 12 in Overall Length, 1 in Shank Diameter, Cylindrical with 3-Flat Shank, Left Hand of Holder, A..DWLNL Toolholder, Insert Compatibility: WNMG 06 04 08, Trigon Insert, 3/8 in Inscribed Circle, 0.187 in Insert Thickness, Steel, Yes Through Coolant
Features
- Stable and secure clamping
- Chip control and process security
- Excellent surface finish
Specifications
ApplicationTurning Applications
Hand of HolderLeft
Inscribed Circle3/8 in
Insert CompatibilityWNMG 06 04 08
Insert ShapeTrigon
Insert Thickness0.187 in
MaterialSteel
Maximum Bore Depth4 in
Minimum Bore Diameter1.299 in
Overall Length12 in
SeriesT-Max P
Shank Diameter1 in
Shank TypeCylindrical with 3-Flat
Through Coolant (Yes/No)Yes
Toolholder TypeA..DWLNL
Additional Information
Includes5762599 Shim, 5762856 Clamp Set, 5763195 Shim Screw and 5764148 Key
Country of OriginSE
