Sandvik Coromant SANC 5739634

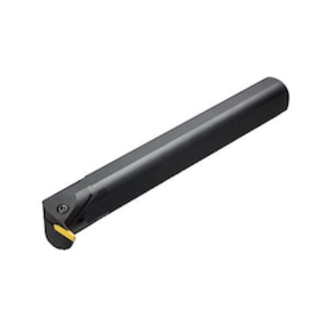

Sandvik Coromant 5739634 CoroCut 1-2 Indexable Boring Bar, AG123 Toolholder, 40 mm Dia Min Bore, Right Hand of Holder, 250 mm OAL
Invoice description:
Boring Bar Rag123e09-32b
Factory Order
Sandvik Coromant Indexable Boring Bar, Series: CoroCut 1-2, 40 mm Minimum Bore, 128 mm Maximum Bore Depth, 250 mm Overall Length, 32 mm Shank Diameter, Cylindrical with 3-Flat Shank, Right Hand of Holder, AG123 Toolholder, Insert Compatibility: N123E2-GM, 3212 012-259 Insert Screw, Steel, Yes Through Coolant
Features
- Rail insert seat ensures stable and precise insert position
- Profiling inserts for high precision profiling operations
- Wiper design for excellent surface finish
- Neutral, right and left hand style inserts with geometries dedicated for parting off
- Inserts for hard part turning at high feed rates
- Blanks for do-it-yourself grinding
- Grooving inserts in many widths and with many corner radii
- Tailor made inserts and tools
Specifications
ApplicationFor parting, external grooving, face grooving, internal grooving, profiling and hard part turning applications
Hand of HolderRight
Insert CompatibilityN123E2-GM
Insert Screw3212 012-259
MaterialSteel
Maximum Bore Depth128 mm
Minimum Bore Diameter40 mm
Overall Length250 mm
SeriesCoroCut 1-2
Shank Diameter32 mm
Shank TypeCylindrical with 3-Flat
Through Coolant (Yes/No)Yes
Toolholder TypeAG123
Additional Information
Includes5758603 Clamping Screw and 5764101 Key
Country of OriginSE
