Sandvik Coromant SANC 5937362

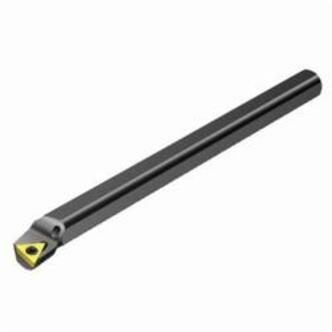

Sandvik Coromant 5937362 CoroTurn 107 Indexable Boring Bar, A..STFCR Toolholder, 0.929 in Dia Min Bore, Right Hand of Holder, 10 in OAL
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn 107, 0.929 in Minimum Bore, 3 in Maximum Bore Depth, 10 in Overall Length, 3/4 in Shank Diameter, Cylindrical with 3-Flat Shank, Right Hand of Holder, A..STFCR Toolholder, Insert Compatibility: TCMT 11 02 04, Triangle Insert, 1/4 in Inscribed Circle, 5763193 Insert Screw, 0.094 in Insert Thickness, Steel, Yes Through Coolant
Features
- Screw clamp design of CoroTurn 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain
- Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control
- When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Wiper geometries available for high feeds and high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Holders with conventional and precision coolant design
Specifications
ApplicationFor internal and external turning
Hand of HolderRight
Inscribed Circle1/4 in
Insert CompatibilityTCMT 11 02 04
Insert Screw5763193
Insert ShapeTriangle
Insert Thickness0.094 in
MaterialSteel
Maximum Bore Depth3 in
Minimum Bore Diameter0.929 in
Overall Length10 in
SeriesCoroTurn 107
Shank Diameter3/4 in
Shank TypeCylindrical with 3-Flat
Through Coolant (Yes/No)Yes
Toolholder TypeA..STFCR
