Harvey Tool HARV 45631-C3

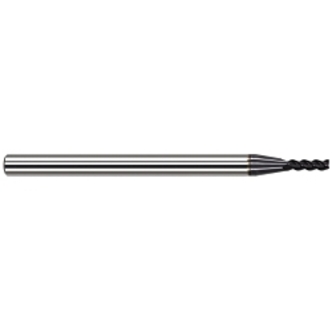

Harvey Tool 45631-C3 Variable Helix End Mill, 0.031 in Dia Cutter, 0.005 in Corner Radius, 3/32 in Length of Cut, (3) Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, AlTiN
Invoice description:
Em 1/32x3/32x1/8x1-1/2 .005r 3fl
Manufacturer PN: 45631-C3
Factory Order
--Price Unavailable--
Harvey Tool, 45631-C3, Variable Helix End Mill, 0.031 in Diameter Cutter, 0.005 in Corner Radius, 1-1/2 in Overall Length, 3/32 in Length of Cut, 3 Flutes, Upcut Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 37 deg Helix Angle, Cylindrical Shank, Solid Carbide, AlTiN
Features
- Variable helix design reduces chatter and harmonics, and increases material removal rates
- Coating improves lubricity and heat resistance
- H6 shank tolerance for shrink fit holders
- Applicable Materials are Cast Iron, Steel, Stainless Steel
Specifications
ApplicationOptimized for readily machinable medium alloy steels, stainless steels and tool steels
Corner Radius0.005 in
Cutter Diameter0.031 in
Cutting DirectionRight Hand
FinishAlTiN
Flute TypeUpcut
Helix Angle37 deg
Length of Cut3/32 in
MaterialSolid Carbide
Number of Flutes3
Overall Length1-1/2 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeCenter Cut Variable Helix
Additional Information
Country of OriginUS
