Precision Twist Drill PTD 040305

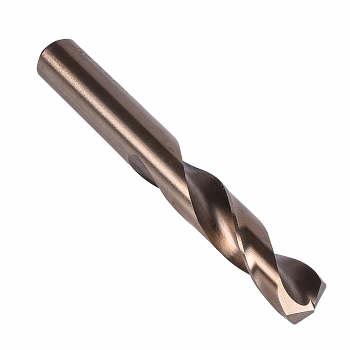

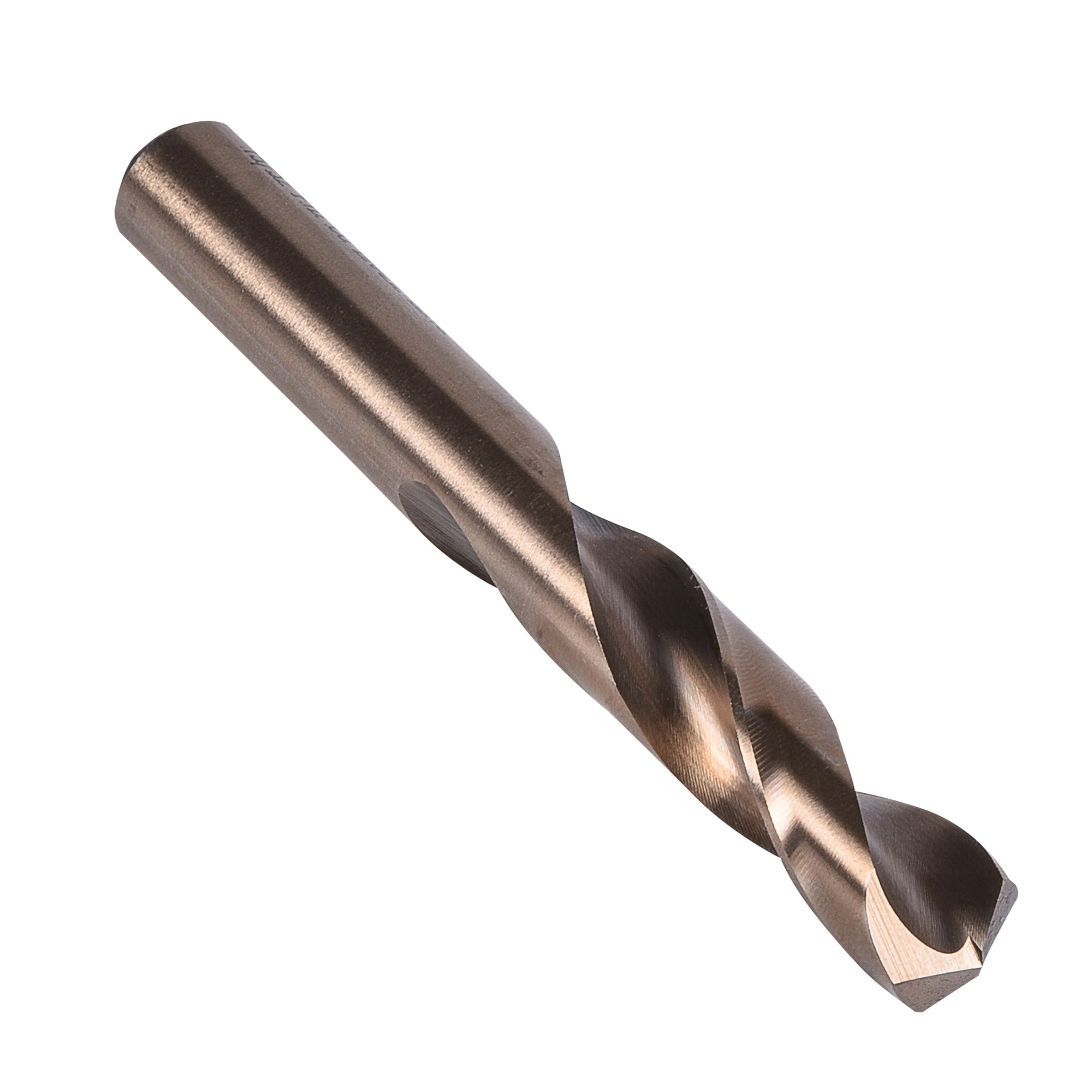

Precision Twist Drill 040305 M40CO Heavy Duty Short Length Drill Bit, 5/64 in Drill - Fraction, 0.0781 in Drill - Decimal Inch, HSS-E, Bronze
Invoice description:
5/64 In Stub Drl Shrt M40co Hss-e Brz 135d M40co Hss-e Bronze 135d Stub Drill Short Ansi 15/32 Inch 5995991
In stock
(5)
Precision Twist Drill Short Length Drill Bit, Heavy Duty, Series: M40CO, Imperial, 5/64 in Drill - Fraction, 0.0781 in Drill - Decimal Inch, 1-11/16 in Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 11/16 in Flute Length, 0.078 in Shank, Straight Shank, 135 deg Point, Self-Centering/Split Point, Right Hand Cutting Direction, HSS-E Cutting Edge, HSS-E, Bronze, Applicable Materials: Alloy Steel, Ferritic + Austenitic, Free Machining Stainless Steel, Hardened and Tempered Steel, Martensitic, Magnetic Soft Steel, Nickel, Nodular Graphite/Malleable Cast Iron, Plain Carbon Steel, Structural Steel/Case Carburizing Steel and Titanium
Features
- Low thrust design self-centering split point for easier penetration
- Cobalt base material with bronze oxide for wear resistance and lubricity
Specifications
ApplicationFor machining operations in screw machines
TypeHeavy Duty
SeriesM40CO
Drill Diameter MeasuImperial
Drill Size - Fractio5/64 in
Drill Size - Decimal0.0781 in
Overall Length1-11/16 in
Cutting Depth2.5XD
Additional Information
Standards/ApprovalANSI Specified
Country of OriginFR
