Harvey Tool HARV FBD0730-C3

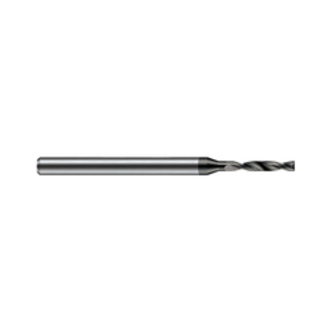

Harvey Tool FBD0730-C3 High Performance Imperial Miniature Drill, #49 Drill - Wire, 0.073 in Drill - Decimal Inch, 3 mm Shank, 2 Flutes
Invoice description:
Drill 1.854mm Flat Bot
Factory Order
Harvey Tool Miniature Drill, High Performance Imperial, #49 Drill Size - Wire, 0.073 in Drill Size - Decimal Inch, 50 mm Overall Length, 0.492 in Cutting Depth, 2 Flutes, 0.492 in Flute Length, 3 mm Shank, 180 deg Point, Flat Bottom Point, Solid Carbide Cutting Edge, Solid Carbide, AlTiN Coated
Features
- Flat bottom design (no point angle and no dish) allows for drilling on irregular surfaces and reduces burrs on break through
- h6 shank tolerance for high precision tool holders
Specifications
ApplicationFor drilling on inclined and rounded surfaces, creating flat bottom holes, tilted drilling for angled holes and drilling intersecting holes, half holes, shoulders and thin plates
Cutting Depth0.492 in
Cutting Edge MaterialSolid Carbide
Drill Size - Decimal Inch0.073 in
Drill Size - Wire#49
FinishAlTiN Coated
Flute Length0.492 in
MaterialSolid Carbide
Number of Flutes2
Overall Length50 mm
Point Angle180 deg
Point TypeFlat Bottom
Shank Size3 mm
TypeHigh Performance Imperial
Additional Information
Country of OriginUS
