Dormer UTD 0044988

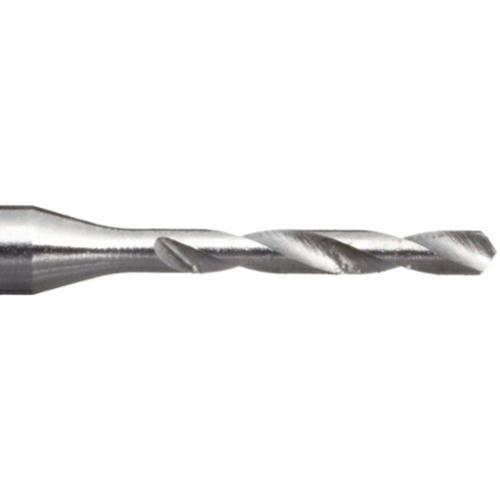

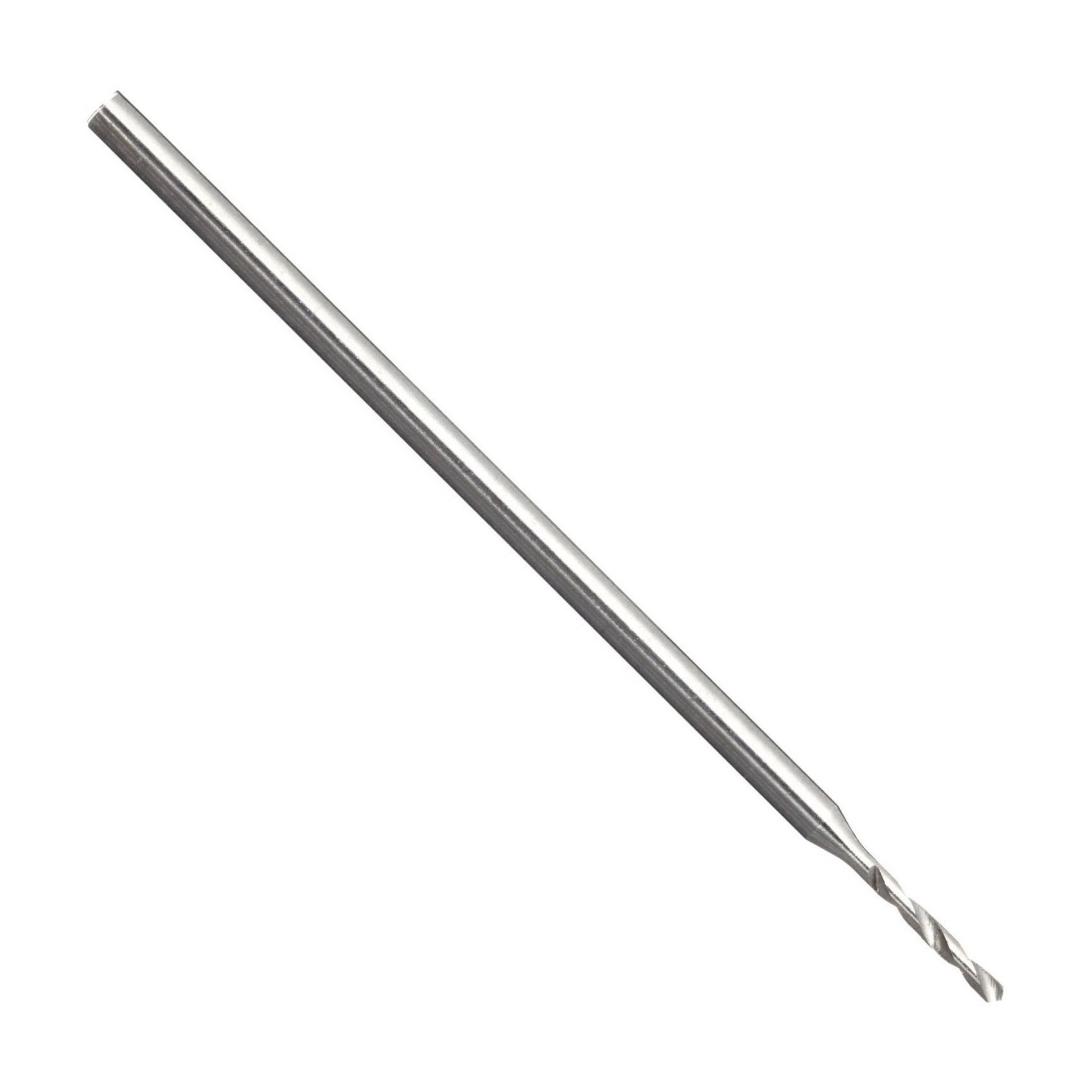

Dormer 5971007 A720 Type N Short Length Dormer Micro Drill, 0.15 mm Drill - Metric, 0.0059 in Drill - Decimal Inch, 1 mm Shank
Invoice description:
A720 Hsco Micro Drills Din1899
Factory Order
Dormer Dormer Micro Drill, Type N Short Length, Series: 150T, 0.15 mm Drill Size - Metric, 0.0059 in Drill Size - Decimal Inch, 25 mm Overall Length, 2.5xD Cutting Depth, Spiral Flute, 1 mm Flute Length, 1 mm Shank, Straight Shank, 118 deg Point, Conventional Point, Right Hand Cutting, HSS-E Cutting Edge, HSS-E, Bright, Applicable Materials: Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Nickel and Copper, Plain Carbon Steel and Titanium
Features
- Micro-size drill for drilling very small holes
- High speed steel (HSS) containing cobalt is a good combination of toughness and hardness, for use on drilling through hard substances
- Uncoated (bright), for use with a wide range of drilling materials

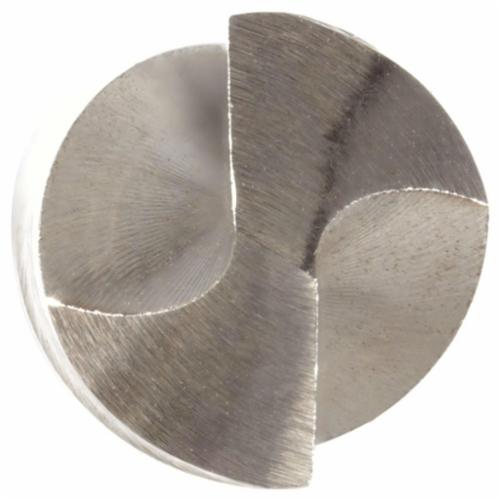

- 118 deg conventional point angles, for general drilling applications
- Round shanks, for use on a variety of tool holding systems regular helix
- No coolant channe
Specifications
ApplicationFor general drilling applications
Applicable MaterialsLamellar Graphite, Nodular Graphite/Malleable Cast Iron, Nickel and Copper, Plain Carbon Steel and Titanium
Cutting Depth2.5xD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS-E
Drill Size - Decimal Inch0.0059 in
Drill Size - Metric0.15 mm
FinishBright
Flute Length1 mm
Flute TypeSpiral
MaterialHSS-E
Overall Length25 mm
Point Angle118 deg
Point TypeConventional
SeriesA720
Shank Size1 mm
Shank TypeStraight
TypeType N Short Length
Additional Information
Standards/ApprovalDIN 1899|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
Country of OriginFR
