Harvey Tool HARV 848508-C6

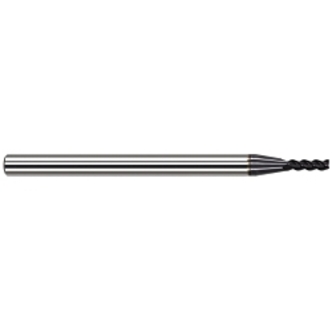

Harvey Tool 848508-C6 Variable Helix End Mill, 0.125 in Dia Cutter, 0.008 in Corner Radius, 3/8 in Length of Cut, (4) Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, AlTiN Nano

Manufacturer PN: 848508-C6
Factory Order
QTY:


Harvey Tool, 848508-C6, Variable Helix End Mill, 0.125 in Diameter Cutter, 0.008 in Corner Radius, 1-1/2 in Overall Length, 3/8 in Length of Cut, 4 Flutes, Upcut Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 34 deg Helix Angle, Cylindrical Shank, 1.125 in Shank Length, Solid Carbide, AlTiN Nano

  • Features

  • Variable helix design (approx. 34) reduces chatter and harmonics and increases material removal rates
  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • Applicable Materials are Cast Iron, Steel, Stainless Steel, Hardened Alloys

Specifications

ApplicationSuitable for steels up to 45Rc
Corner Radius0.008 in
Cutter Diameter0.125 in
Cutting DirectionRight Hand
FinishAlTiN Nano
Flute TypeUpcut
Helix Angle34 deg
Length of Cut3/8 in
MaterialSolid Carbide
Number of Flutes4
Overall Length1-1/2 in
Shank Diameter1/8 in
Shank Length1.125 in
Shank TypeCylindrical
TypeCenter Cut Variable Helix
