Sandvik Coromant SANC 5723352

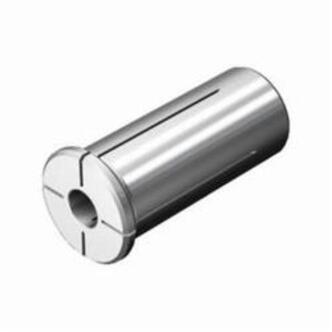

Sandvik Coromant 5723352 CoroGrip/HydroGrip Cylindrical Sealed Sleeve Collet With Coolant, SZ 25, 2.362 in OAL, 0.438 in Capacity, 1.575 to 2.205 in L Clamping Hole, 1.181 in Dia Body, 1.181 in Dia Head
Invoice description:
A393.cgs-25 07 56
Factory Order
Sandvik Coromant Collet, Cylindrical Sealed Sleeve, Series: CoroGrip/HydroGrip, SZ 25, 1.181 in Body Dia, 1.181 in Head Dia, 2.362 in Overall Length, 0.438 in, 1.575 to 2.205 in Clamping Hole Length, ANSI Code: A393.CGS-25 07 56, ISO Code: A393.CGS-25 07 56, For Use With: Hydraulic Membrane Chucks with Flange
Features
- 0 deg half taper body
- Steel body
- Axial concentric coolant entry
- 80 bar coolant
- Axial concentric coolant exit
- 25 mm Dia shank
- 4 mm L body
- 4 mm L functional
- 56 mm L dead shank
- 4 mm overhang
Specifications
ANSI CodeA393.CGS-25 07 56
Body Diameter1.181 in
Capacity0.438 in
Clamping Hole Length1.575 to 2.205 in
Head Diameter1.181 in
ISO CodeA393.CGS-25 07 56
Overall Length2.362 in
SeriesCoroGrip/HydroGrip
SizeSZ 25
Suitable For Use WithHydraulic Membrane Chucks with Flange
TypeCylindrical Sealed Sleeve
Additional Information
Country of OriginCH
