Sandvik Coromant SANC 6153099

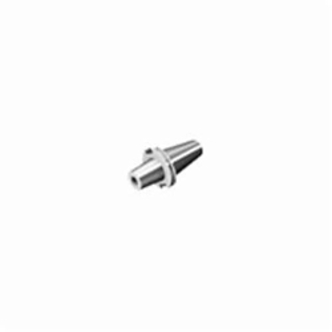

Sandvik Coromant 6153099 CoroGrip/HydroGrip Cylindrical Sealed Sleeve Collet With Coolant, SZ 25, 2.362 in OAL, 3/8 in Capacity, 1.457 to 2.205 in L Clamping Hole, 1.181 in Dia Body, 1.181 in Dia Head
Invoice description:
A393.cg-25 06 56 Cylindrical Sleeve
Factory Order
Sandvik Coromant Collet, Cylindrical Sealed Sleeve, Series: 452, SZ 25, 1.181 in Body Dia, 1.181 in Head Dia, 2.362 in Overall Length, 3/8 in, 1.457 to 2.205 in Clamping Hole Length, ANSI Code: A393.CG-25 06 56, ISO Code: A393.CG-25 06 56, For Use With: Hydraulic Membrane Chucks with Flange
Features
- 0 deg half taper body
- Steel body
- Axial concentric coolant entry
- 10 bar coolant
- Axial concentric coolant exit on circle
- 25 mm Dia shank
- 4 mm L body
- 4 mm L functional
- 56 mm L dead shank
- 4 mm overhang
Additional Information
Country of OriginCH
