Proto PRO J6202A

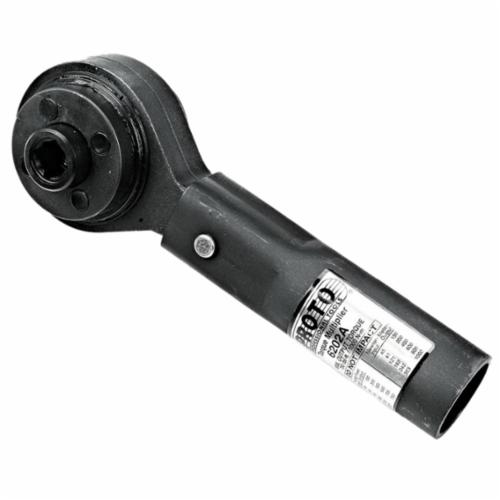

Proto J6202A Torque Multiplier, 4:1 Gear Ratio, 1:3.33 Torque Ratio, 1/2 in Square Female x 3/4 in Square Male Drive, 8-17/32 in OAL, 250 ft-lb Max, 750 ft-lb Max, Tubular Bar
Invoice description:
Multiplier Torque 750 Ft Lb 750 Ft Per Lb
UPC: 662679131418
UNSPSC:
27111715
Manufacturer PN: J6202A
$858.28 EA
Factory OrderEstimated to ship in 31 days
Proto Torque Multiplier, 4:1 Gear Ratio, 1:3.33 Torque Ratio, 1/2 in Square Female x 3/4 in Square Male Drive, 250 ft-lb Maximum Torque Input, 750 ft-lb Maximum Torque Output, 2-13/16 in L x 3-3/32 in D Head, 8-17/32 in Overall Length, Reaction System: Tubular Bar
Features
- Standard torque accuracy is +/-5% of reading
- Single stage planetary gear system
- 5-1/4 in L handle
Specifications
ApplicationFor use with torque wrenches and heavy duty power or impact sockets
Drive Size1/2 in Square Female x 3/4 in Square Male
Gear Ratio4:1
Head Size2-13/16 in L x 3-3/32 in D
Maximum Torque Input250 ft-lb
Maximum Torque Output750 ft-lb
Overall Length8-17/32 in
Reaction SystemTubular Bar
Torque Ratio1:3.33
Additional Information
WarrantyLifetime
Country of OriginUS
