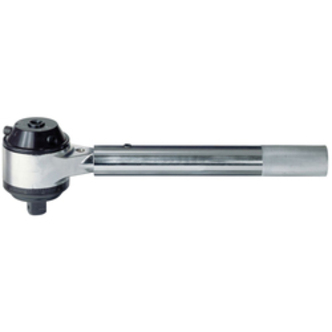

GEARWRENCH GW 64-834G

GEARWRENCH Torque Multiplier, 15:1 Gear Ratio, 13.6:1 Torque Ratio, 1/2 x 1 in Drive, 162 ft-lb Maximum Torque Input, Head Ratcheting, 2200 ft-lb Maximum Torque Output, 5.812 in L x 4.031 in W Head, 20 in Overall Length, Reaction System: Bar

• Features

• Low input torque is required and can easily be applied by one person
• Internal planetary gear system provides strength and durability
• Place an impact socket on the output square to attach to the fastener, then restrain the reaction bar against the equipment being serviced
• Input and output rotate in a matching direction, while the reaction arm moves in the opposite direction from the input/output force
• Torque accuracy of +/- 5% CW between 20% and 100% of wrench capability
• Square drive shears at 3% to 10% of overload torque to help protect against internal damage and permits easy replacement of the square drive
• Built-in anti-backlash maintains the multipliers input torque, allowing the use of a ratcheting head torque wrench for more efficiency
• Built-in angle of turn protractor displays the output angle, providing effective use on fasteners requiring a specific angle rotation after applied torque
