Sandvik Coromant SANC 5737062

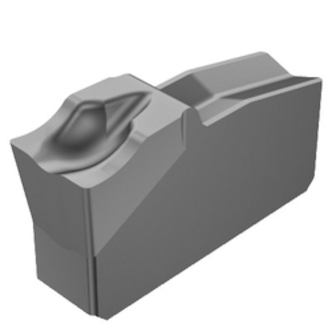

Sandvik Coromant 5737062 T-Max Q-Cut Parting Insert, ANSI Code: N151.2-300-5E H13A, 30 N151.2 Insert, Material Grade: K, M, N, S, 0.118 in W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: H13A
Invoice description:
Ins N151.2-300-5e H13a
Factory Order
Sandvik Coromant Parting Insert, Series: T-Max Q-Cut, N151.2 Insert, 30 Insert, 0.118 in Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, 0.2672 in Thickness, 0.214 in Length, 5E Chipbreaker, 0.008 in Corner Radius, Manufacturers Grade: H13A, ANSI Code: N151.2-300-5E H13A, ISO Code: N151.2-300-5E H13A, Ambidextrous Hand, Carbide, Uncoated, Material Grade: K, M, N, S
Features
- Dedicated geometries and grades for all materials
- V-clamped 1-edged insert for good stability
- For long overhangs and parting off big components
Specifications
ApplicationFor medium applications
ANSI CodeN151.2-300-5E H13A
Chipbreaker5E
Corner Radius0.008 in
Cutting Width0.118 in
FinishUncoated
Hand of InsertAmbidextrous
Insert Size30
Insert StyleN151.2
ISO CodeN151.2-300-5E H13A
Lead Angle0 deg
Lead Angle DirectionNeutral
Length0.214 in
Manufacturers GradeH13A
MaterialCarbide
Material GradeK, M, N, S
Relief Angle7 deg
SeriesT-Max Q-Cut
Thickness0.2672 in
Additional Information
Country of OriginJP
