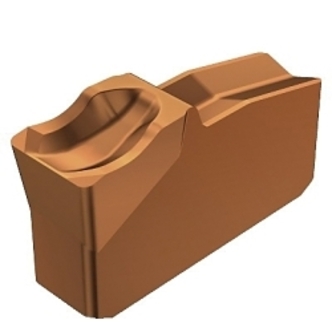

Sandvik Coromant SANC 5736774

Sandvik Coromant 5736774 T-Max Q-Cut Parting Insert, ANSI Code: N151.2-250-4E 1125, 25 N151.2 Insert, Material Grade: K, M, N, P, S, 0.098 in W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, PVD-TiAlN Coated

UNSPSC:
Manufacturer PN: 5736774
$24.33 EACH
Factory Order
Estimated to ship in 14 days
QTY:


Sandvik Coromant Parting Insert, Series: T-Max Q-Cut, N151.2 Insert, 25 Insert, 0.098 in Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, 0.2672 in Thickness, 0.26 in Length, 4E Chipbreaker, 0.012 in Corner Radius, Manufacturers Grade: 1125, ANSI Code: N151.2-250-4E 1125, ISO Code: N151.2-250-4E 1125, Neutral Hand, Carbide, PVD-TiAlN Coated, Material Grade: K, M, N, P, S

  • Features

  • Dedicated geometries and grades for all materials
  • V-clamped 1-edged insert for good stability
  • For long overhangs and parting off big components

Specifications

ApplicationFor pre-machining applications
ANSI CodeN151.2-250-4E 1125
Chipbreaker4E
Corner Radius0.012 in
Cutting Width0.098 in
FinishPVD-TiAlN Coated
Hand of InsertNeutral
Insert Size25
Insert StyleN151.2
ISO CodeN151.2-250-4E 1125
Lead Angle0 deg
Lead Angle DirectionNeutral
Length0.26 in
Manufacturers Grade1125
MaterialCarbide
Material GradeK, M, N, P, S
Relief Angle7 deg
SeriesT-Max Q-Cut
Thickness0.2672 in
