Sandvik Coromant SANC 5736776

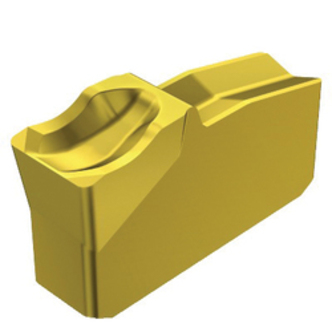

Sandvik Coromant 5736776 T-Max Q-Cut Parting Insert, ANSI Code: N151.2-250-4E 2135, 25 N151.2 Insert, Material Grade: H, K, M, N, P, S, 0.098 in W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide
Invoice description:
Ins N151.2-2-250-4e 1125
Factory Order
Sandvik Coromant Parting Insert, Series: T-Max Q-Cut, N151.2 Insert, 25 Insert, 0.098 in Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, 0.2672 in Thickness, 0.26 in Length, 4E Chipbreaker, 0.012 in Corner Radius, Manufacturers Grade: 2135, ANSI Code: N151.2-250-4E 2135, ISO Code: N151.2-250-4E 2135, Neutral Hand, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: H, K, M, N, P, S
Features
- Dedicated geometries and grades for all materials
- V-clamped 1-edged insert for good stability
- For long overhangs and parting off big components
Specifications
ApplicationFor pre-machining applications
ANSI CodeN151.2-250-4E 2135
Chipbreaker4E
Corner Radius0.012 in
Cutting Width0.098 in
FinishCVD-TiCN+Al2O3+TiN Coated
Hand of InsertNeutral
Insert Size25
Insert StyleN151.2
ISO CodeN151.2-250-4E 2135
Lead Angle0 deg
Lead Angle DirectionNeutral
Length0.26 in
Manufacturers Grade2135
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesT-Max Q-Cut
Thickness0.2672 in
Additional Information
Country of OriginJP
